Same model may have multiple batches, images only for reference.

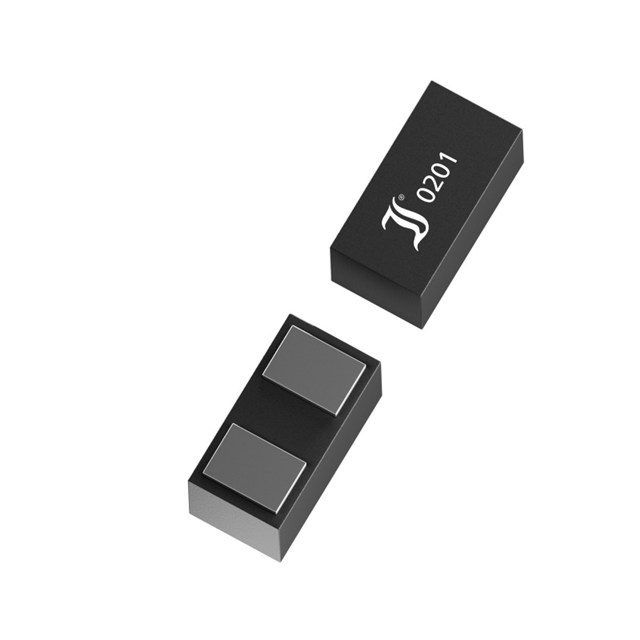

ESD0521Z Real Image
Same model may have multiple batches, images only for reference.

ESD0521Z

Part No ESD0521Z
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS, 6.00V, 28W  /  25V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 25V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
MSL Level Not Applicable
REACH Status REACH info available upon request
Other Names 2721-ESD0521ZTR
Standard Package 30
Win Source Part Number 1057849-ESD0521Z
Ultra Librarian 3D Model Ultra Librarian ESD0521Z CAD Model

Description

This Zener type TVS diode is an electronic component designed for general purpose applications.

  • Package Type: Tape & Reel (TR)
  • Channel: 1 Bi-Directional
  • Voltage Breakdown (min): 6V
  • Voltage Reverse Standoff (typ): 5V
  • Voltage Clamping (max) @ Ipp: 25V
  • Power Peak Pulse: 100W
  • Capacitance @ Frequency: 0.5pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 4A (8/20µs)
  • Package/Case: 0201 (0603 Metric)
  • Supplier Device Package: 0201
  • Operating Temperature: -50°C ~ 150°C (TJ)
