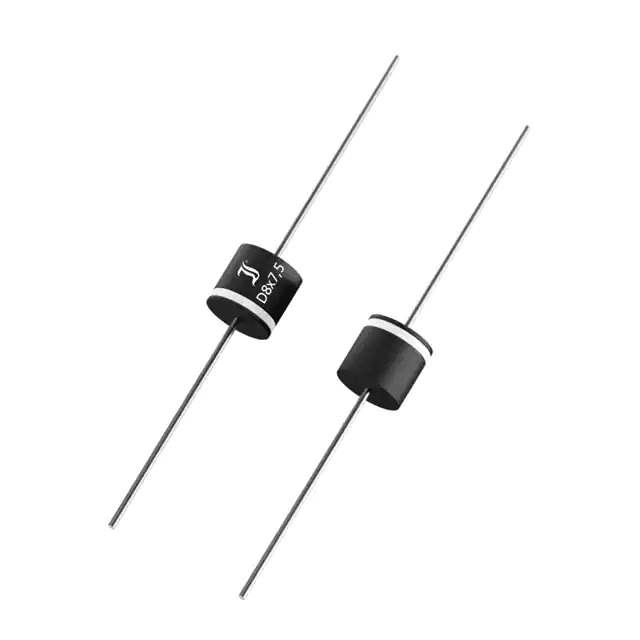

P1000M Real Image
Same model may have multiple batches, images only for reference.

P1000M

Part No P1000M
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 10A P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 10 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Operating Temperature - Junction -50°C ~ 175°C
Standard Package 1,000 pcs
MSL Level Not Applicable
HTSUS 8541.10.0000
Win Source Part Number 929753-P1000M
Ultra Librarian 3D Model Ultra Librarian P1000M CAD Model

Description

The 929753-P1000M is a standard recovery diode rectifier designed for applications requiring a maximum DC reverse voltage of 1000V and an average rectified current of 10A.

  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 10A
  • Forward Voltage: 1.05V @ 10A
  • Reverse Recovery Time: 1.5µs
  • Reverse Leakage Current: 10µA @ 1000V
  • Temperature Range: -50°C to 175°C
  • Package Type: P600
  • Mounting Type: through-hole
  • Standard Package: 1000 pcs
