Same model may have multiple batches, images only for reference.

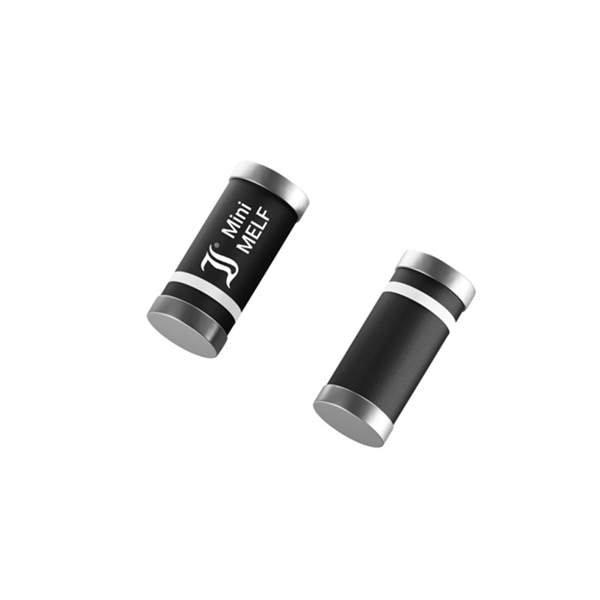

ZMD10 Real Image
Same model may have multiple batches, images only for reference.

ZMD10

Part No ZMD10
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 10V 1W DO213AA / Zener Diode 10 V 1 W ±5% Surface Mount DO-213AA, MINI-MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Manufacturer Diotec Semiconductor
Packaging Reel - TR
Voltage - Zener (Nom) (Vz) 10 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 5.2 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 7 V
Temperature Range - Operating -50°C ~ 175°C (TJ)
Mounting Surface Mount
Case / Package DO-213AA
Supplier Device Package DO-213AA, MINI-MELF
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Other Part Number 2796-ZMD10TR
Standard Package 2,500
Win Source Part Number 1325418-ZMD10
Ultra Librarian 3D Model Ultra Librarian ZMD10 CAD Model

Description

The ZMD10 is a zener diode manufactured by Diotec Semiconductor.

  • Features: High Power Dissipation
  • Features: Low Leakage Current
  • Features: Compact Package
  • Features: High Voltage Regulation
  • Applications: Voltage Reference
  • Features: Wide Temperature Range
  • ROHS3 Compliant: True
