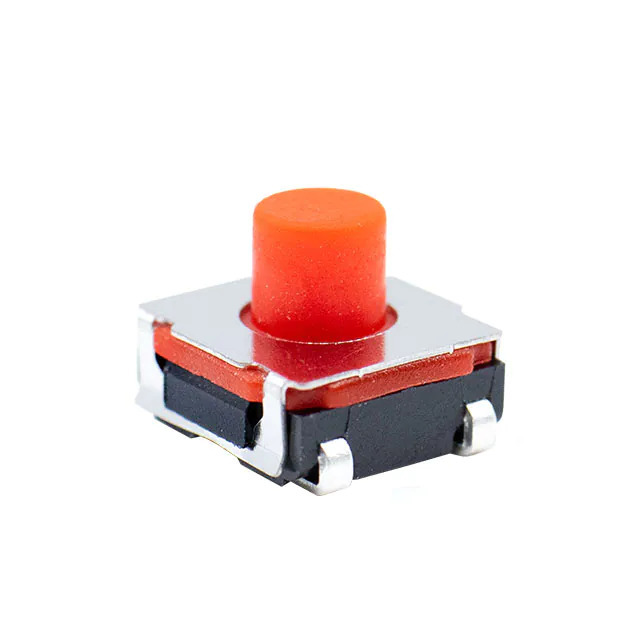

TL3145BF260QJ

Name: TL3145BF260QJ
Brand: E-Switch
SKU: 1376566
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3145BF260QJ
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACT SPST-NO 50MA 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	TL3145BF260QJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL3145
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	5.20mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	6.45mm x 6.45mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	-
Switch Travel	0.15mm
Mechanical Life	3,000,000 Cycles
Base Product Number	TL3145
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376566-TL3145BF260QJ
Ultra Librarian 3D Model	Ultra Librarian TL3145BF260QJ CAD Model

Description

The TL3145BF260QJ is a tactile switch from E-Switch.

Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Height Off PC Board, Vertical: 5.20mm
Actuator Travel: 0.15mm
Mechanical Life: 3,000,000 Cycles
Contact Rating @ Voltage: 0.05A @ 12VDC
Operating Force: 260gf
Features: Dust Tight, Waterproof
Ingress Protection: IP67
Illumination: Non-Illuminated
Termination Style: J Lead
Operating Temperature: -40°C ~ 85°C
