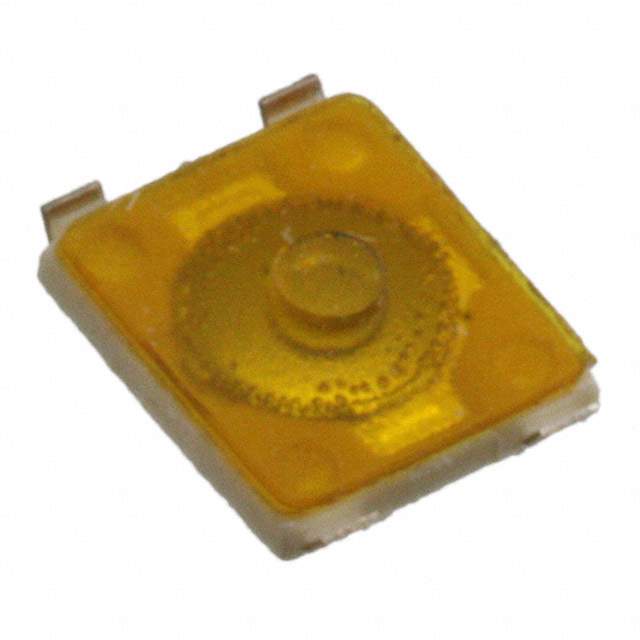

TL3700AF160QG Real Image1 TL3700AF160QG Real Image2
Same model may have multiple batches, images only for reference.
TL3700AF160QG Real Image1 TL3700AF160QG Real Image2
TL3700AF160QG Real Image1 TL3700AF160QG Real Image2
Same model may have multiple batches, images only for reference.

TL3700AF160QG

Part No TL3700AF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL3700
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.65mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection -
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material -
Switch Travel 0.15mm
Mechanical Life 100,000 Cycles
Base Product Number TL3700
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Standard Package 8,000 pcs
Win Source Part Number 1383607-TL3700AF160QG
Ultra Librarian 3D Model Ultra Librarian TL3700AF160QG CAD Model

Description

The 1383607-TL3700AF160QG is a tactile switch manufactured by E-Switch. It is a part of the TL3700 series and belongs to the category of Switches>Tactile Switches.

  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Switch Function: SPST-NO (Single Pole Single Throw Normally Open)
  • Switch Function: Off-Mom (Momentary)
  • Switch Travel: 0.15mm
  • Operating Force: 160gf
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
