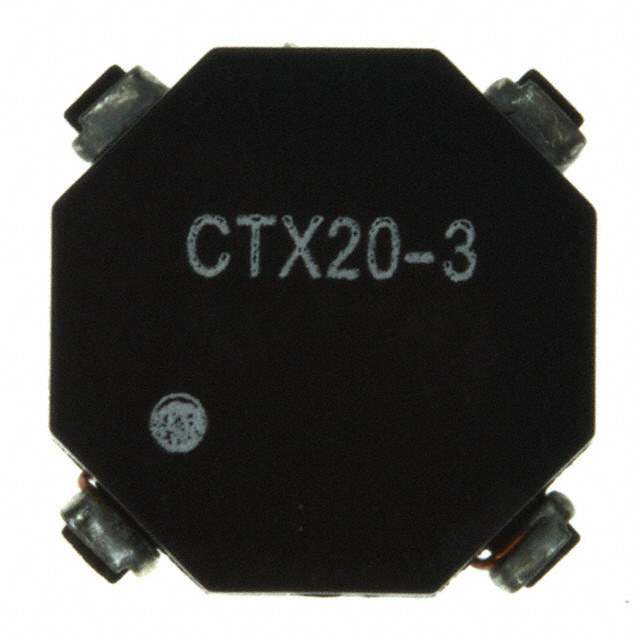

CTX20-3-R Real Image
Same model may have multiple batches, images only for reference.

CTX20-3-R

Part No CTX20-3-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 20.18UH SMD / Unshielded 2 Coil Inductor Array 80.74 µH Inductance - Connected in Series 20.18 µH Inductance - Connected in Parallel 78mOhm Max DC Resistance (DCR) - Parallel 1.5 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series OCTA-PAC®
Package Tape & Reel (TR)
Number of Coils 2
Inductance - Connected In Parallel 20.18 µH
Inductance - Connected In Series 80.74 µH
Tolerance ±20%
Current Rating - Parallel 1.5 A
Current Rating - Series 750 mA
DC Resistance (DCR) - Parallel 78mOhm Max
DC Resistance (DCR) - Series 312mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height 0.190" (4.83mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX20-3,513-1008-2,513-1008-1,513-1008-6,CTX203R
Standard Package 800
Win Source Part Number 1019292-CTX20-3-R
Ultra Librarian 3D Model Ultra Librarian CTX20-3-R CAD Model

Description

The Eaton - Electronics Division CTX20-3-R is an inductor coil that belongs to the Arrays, Signal Transformers category.

  • Category: Arrays, Signal Transformers
  • Height: 0.190 inches (4.83mm)
  • Dimensions (LxW): 0.550 inches L x 0.550 inches W (13.97mm x 13.97mm)
  • Tolerance: ±20 percent
  • Packaging: Tape and Reel
  • Standard Package: 800
  • Operating Temperature: -40°C to 85°C
  • Current Rating (Parallel): 1.5 A
  • Current Rating (Series): 750 mA
  • DC Resistance (DCR) (Parallel): 78mOhm Max
  • DC Resistance (DCR) (Series): 312mOhm Max
