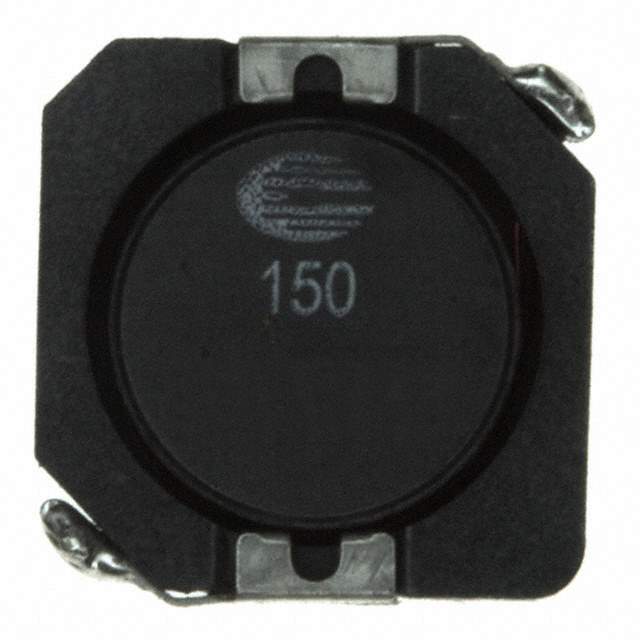

DR1030-150-R Real Image
Same model may have multiple batches, images only for reference.

DR1030-150-R

Part No DR1030-150-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 15UH 2.3A 68.8 MOHM / Inductor Power Shielded Drum Core 14.8uH 30% 100KHz Ferrite 2.3A 0.0688Ohm DCR T/R
Datasheet
DR1030-150-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series DR1030
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±30%
Current Rating 2.3A
Current - Saturation 2.66A
Shielding Shielded
DC Resistance (DCR) 68.8 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.413" L x 0.405" W (10.50mm x 10.30mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 772822-DR1030-150-R
Popularity Medium
Supply and Demand Status Limited
Family Name DR1030
Introduction Date May 26, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DR1030-150-R CAD Model

Description

The Eaton DR1030 series inductor is a wirewound shielded inductor designed for use in a variety of applications.

  • Current Rating: 2.3A
  • Inductance: 15μH
  • Mounting Type: SMD
  • Tolerance: ±30%
  • DC Resistance: 68.8 mOhm Max
  • Core Material: Ferrite
  • Current Saturation: 2.66A
  • Dimensions: 0.413" L x 0.405" W (10.50mm x 10.30mm)
  • Height: 0.118" (3.00mm)
  • Packaging: Reel
  • Applications: Inductors, coils, and chokes
