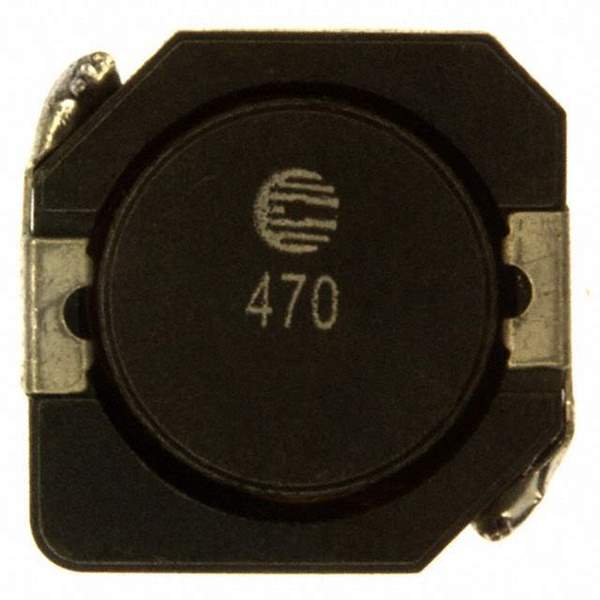

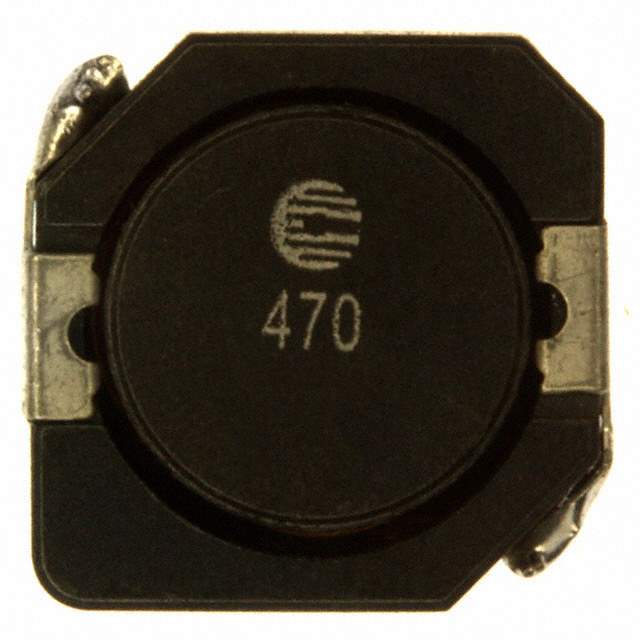

Same model may have multiple batches, images only for reference.

DR1040-470-R

Name: DR1040-470-R
Brand: Eaton Bussmann
SKU: 996508
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DR1040-470-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 47UH 1.9A 128 MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 1.9 A 128mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	DR1040
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±30%
Current Rating (Amps)	1.9 A
Current - Saturation (Isat)	2.1A
Shielding	Shielded
DC Resistance (DCR)	128mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	513-1403-1,513-1403-2,DR1040470R,513-1403-6
Standard Package	850
Win Source Part Number	996508-DR1040-470-R
Ultra Librarian 3D Model	Ultra Librarian DR1040-470-R CAD Model

Alternative Products

Description

The DR1040-470-R is a shielded fixed inductor manufactured by Eaton - Electronics Division.

Series: DR1040
Inductance: 47 µH
Tolerance: ±30%
Core Material: Ferrite
Package/Case: Nonstandard
DC Resistance (DCR): 128mOhm Max
Q @ Freq: Not Specified
Current: 1.9 A
Temperature Range: -40°C to 125°C
Height: 0.157" (4.00mm)
Dimension: 0.413" L x 0.406" W (10.50mm x 10.30mm)
Current Saturation (Isat): 2.1A
Package: Tape & Reel
Standard Package: 850
