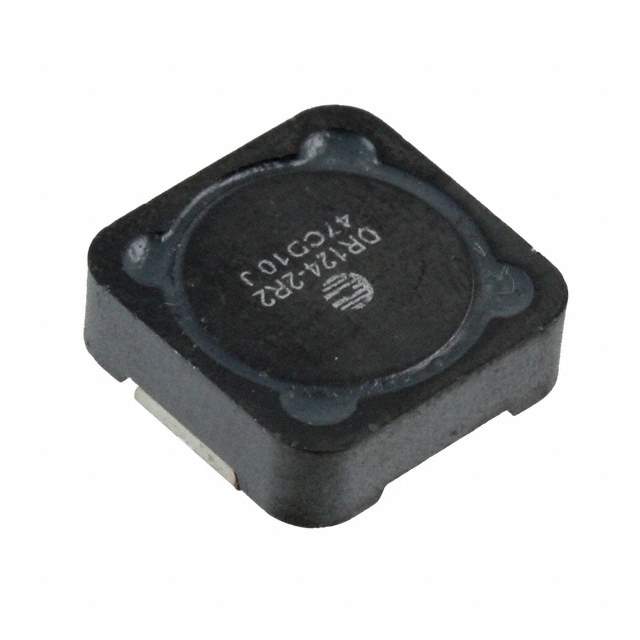

Same model may have multiple batches, images only for reference.

DR124-2R2-R

Name: DR124-2R2-R
Brand: Eaton Bussmann
SKU: 448967
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR124-2R2-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 9.1A 7.1 MOHM
Datasheet	DR124-2R2-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2μH
Tolerance	±20%
Current Rating	9.1A
Current - Saturation	11.45A
DC Resistance (DCR)	7.1 mOhm Max
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.177" (4.50mm)
Win Source Part Number	1034018-DR124-2R2-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian DR124-2R2-R CAD Model

Alternative Products

Description

The Eaton wirewound inductor has a current rating of 9.1A and an inductance of 2.2μH.

Current Rating: 9.1A
Inductance: 2.2μH
Height-Seated (Max): 0.177" (4.50mm)
Mounting Type: SMD (SMT)
Tolerance: ±20%
Material-Core: Ferrite
Current-Saturation: 11.45A
Frequency-Test: 100kHz
DC Resistance (DCR): 7.1 mOhm Max
Operating Temperature: -40°C to 125°C
Supply and Demand: Balanced
Manufacturer: Eaton
