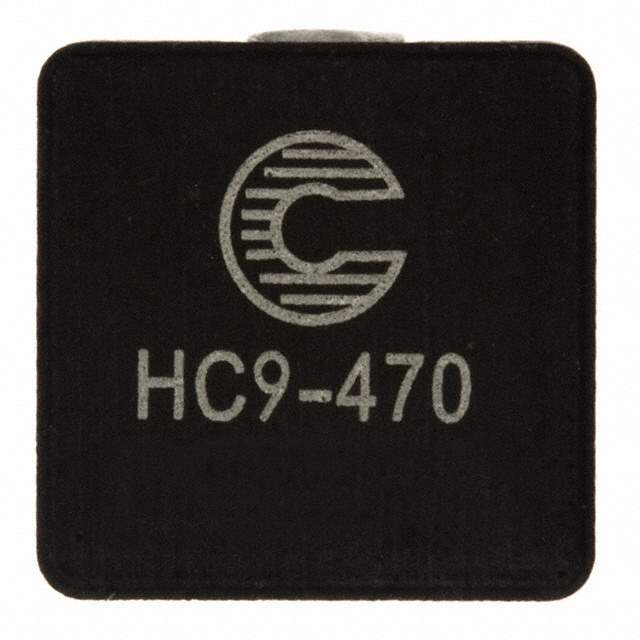

Same model may have multiple batches, images only for reference.

HC9-470-R

Name: HC9-470-R
Brand: Eaton Bussmann
SKU: 1329588
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HC9-470-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 47UH 3.65A 72.3MOHM SM / 47 µH Unshielded Drum Core, Wirewound Inductor 3.65 A 72.3mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	47 µH
Tolerance	±15%
Current Rating (Amps)	3.65 A
Current - Saturation (Isat)	5.7A
Shielding	Unshielded
DC Resistance (DCR)	72.3mOhm Max
Temperature Range - Operating	-40°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.555" L x 0.516" W (14.10mm x 13.10mm)
Height - Seated (Max)	0.295" (7.50mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	HC9470R,513-1353-6,513-1353-2,513-1353-1
Standard Package	450
Win Source Part Number	1329588-HC9-470-R
Ultra Librarian 3D Model	Ultra Librarian HC9-470-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division HC9-470-R is a drum core, wirewound inductor with an unshielded shielding.

Manufacturer: Eaton - Electronics Division
Core Type: Drum Core
Winding Type: Wirewound
Shielding: Unshielded
Size/Dimension: 0.555" L x 0.516" W (14.10mm x 13.10mm)
Inductance: 47 µH
Case/Package: Nonstandard
Mounting: Surface Mount
Tolerance: ±15%
