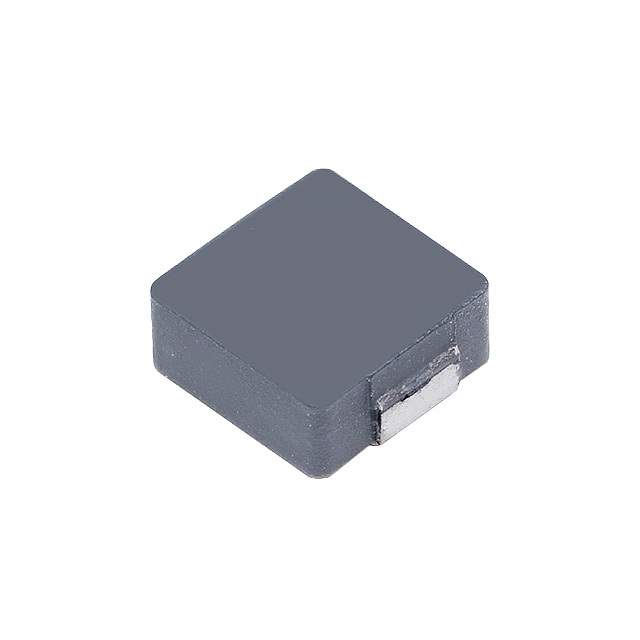

Same model may have multiple batches, images only for reference.

HCMA0703-100-R

Name: HCMA0703-100-R
Brand: Eaton Bussmann
SKU: 1327461
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HCMA0703-100-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 10UH 3.2A 77.6MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3.2 A 77.6mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Other Part Number	283-4531-1,283-4531-2,283-4531-6
Standard Package	1,500
Win Source Part Number	1327461-HCMA0703-100-R
HTSUS	8504.50.8000
ECCN	EAR99
MSL Level	1 (Unlimited)
RoHS Status	ROHS3 Compliant
Height - Seated (Max)	0.118" (3.00mm)
Size / Dimension	0.280" L x 0.268" W (7.10mm x 6.80mm)
Case / Package	Nonstandard
Mounting	Surface Mount
Inductance Frequency - Test	100 kHz
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
DC Resistance (DCR)	77.6mOhm Max
Shielding	Shielded
Current - Saturation (Isat)	7A
Current Rating (Amps)	3.2 A
Tolerance	±20%
Inductance	10 µH
Material - Core	Iron Powder
Type	Drum Core, Wirewound
Packaging	Reel - TR
Manufacturer	Eaton - Electronics Division
Category	Inductors, Coils, Chokes>Fixed Inductors
Ultra Librarian 3D Model	Ultra Librarian HCMA0703-100-R CAD Model

Alternative Products

Description

This inductor, manufactured by Eaton - Electronics Division, is a fixed inductor with a drum core and wirewound type.

Shielding: Shielded
Size: 0.280" L x 0.268" W (7.10mm x 6.80mm)
Inductance: 10 µH
DC Resistance (DCR): 77.6mOhm Max
Tolerance: ±20%
Rated AEC-Q200: Yes
Material: Iron powder
Current Rating: 3.2 A
Saturation Current: 7A
Temperature Range: -55°C to 125°C
Case/Package: Nonstandard
ROHS3 compliant: Yes
