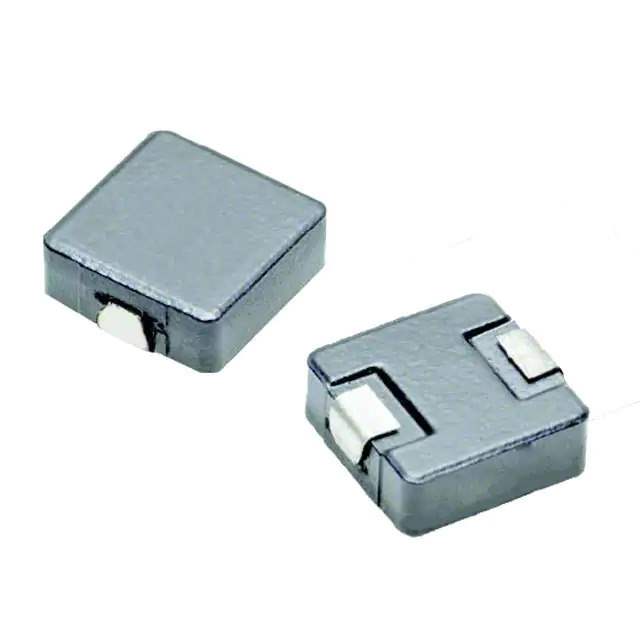

Same model may have multiple batches, images only for reference.

HCMA1305-1R0-R

Name: HCMA1305-1R0-R
Brand: Eaton Bussmann
SKU: 873293
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HCMA1305-1R0-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 1UH 29A 2.42 MOHM SMD / 1 μH Shielded Drum Core, Wirewound Inductor 29 A 2.42mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	HCMA1305
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	29 A
Current - Saturation (Isat)	50A
Shielding	Shielded
DC Resistance (DCR)	2.42mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	400 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	873293-HCMA1305-1R0-R
Ultra Librarian 3D Model	Ultra Librarian HCMA1305-1R0-R CAD Model

Alternative Products

Description

The 873293-HCMA1305-1R0-R is a fixed inductor from the HCMA1305 series by Eaton Bussmann.

Series: HCMA1305
Type: Drum core, wirewound
Shielding: Shielding feature
Package: Tape and reel
Size: 0.524" L x 0.480" W (13.30mm x 12.20mm)
Inductance: 1 µH
Tolerance: ±20%
Maximum Seated Height: 0.197" (5.00mm)
DC Resistance (DCR): 2.42mOhm (maximum)
Operating Temperature: -55°C to 125°C
Mounting: Surface mount
Current Rating: 29 A
Core Material: Iron powder
Standard Package: 400 pcs
ECCN: EAR99
