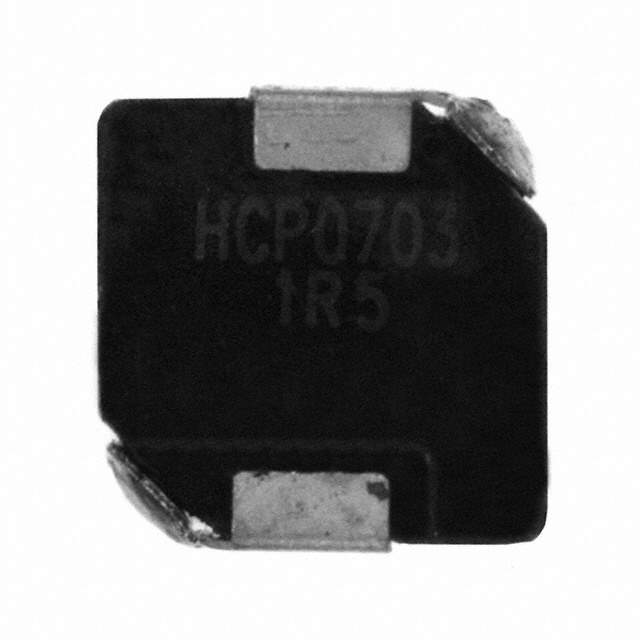

HCP0703-1R5-R Real Image
Same model may have multiple batches, images only for reference.

HCP0703-1R5-R

Part No HCP0703-1R5-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1.5UH 9A 15 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 9 A 15mOhm Max Nonstandard
Datasheet
HCP0703-1R5-R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCP0703
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 18A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.276" W (7.30mm x 7.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1360-2,513-1360-1,HCP07031R5R,513-1360-6
Standard Package 1,500
Win Source Part Number 1157220-HCP0703-1R5-R
Ultra Librarian 3D Model Ultra Librarian HCP0703-1R5-R CAD Model

Description

The 1157220-HCP0703-1R5-R from Eaton - Electronics Division is a high-quality inductor that belongs to the Inductors, Coils, Chokes category.

  • Series: HCP0703
  • Type: Drum core, wirewound, shielded
  • Standard Package: 1,500
  • Mounting Technology: SMD (SMT)
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 15mOhm Max
  • Current Rating: 9 A
  • Status: Obsolete
  • Recommended For: Use in various electronic applications
