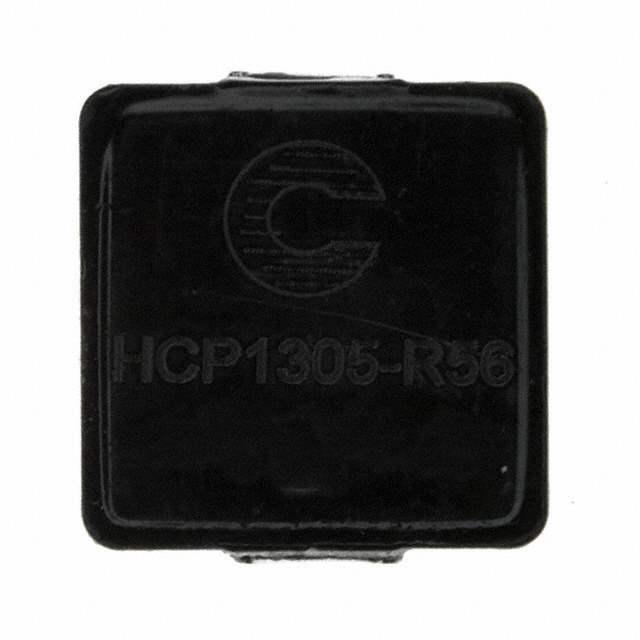

HCP1305-R56-R Real Image
Same model may have multiple batches, images only for reference.

HCP1305-R56-R

Part No HCP1305-R56-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 560NH 36A 1.5 MOHM SMD
Datasheet
HCP1305-R56-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Powdered Iron
Inductance 560nH
Tolerance ±20%
Current Rating 36A
Current - Saturation 55A
DC Resistance (DCR) 1.5 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 113115-HCP1305-R56-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HCP1305-R56-R CAD Model

Description

The manufacturer homepage is not available, and the supply and demand status is balanced. This electronic component is perfect for use in various electronic devices for different applications. It has a current rating of 36A, inductance of 560nH, and a tolerance of ±20%. It is also an obsolete (EOL) product that has a temperature range of -55°C to 125°C.
