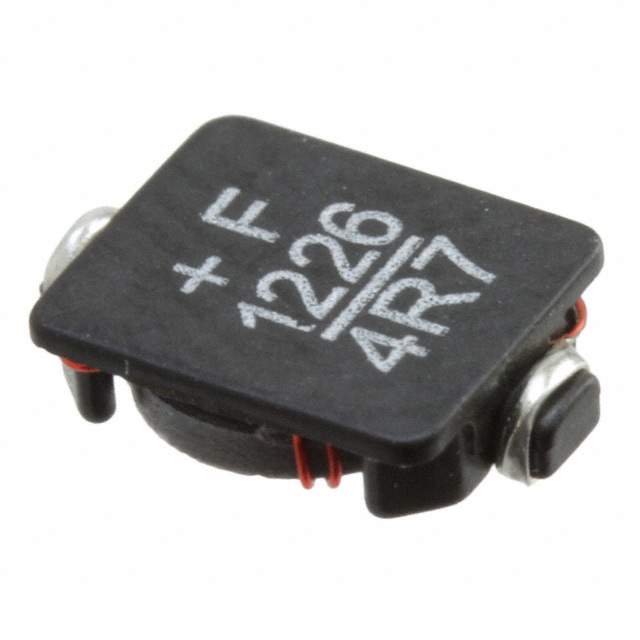

Same model may have multiple batches, images only for reference.

MP2A-330-R

Name: MP2A-330-R
Brand: Eaton Bussmann
SKU: 1134762
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MP2A-330-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 33UH 790MA 476MOHM SMD / 33 µH Unshielded Drum Core, Wirewound Inductor 790 mA 476mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	MICRO-PAC PLUS™
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Molybdenum Permalloy(MPP)
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	790 mA
Current - Saturation (Isat)	790mA
Shielding	Unshielded
DC Resistance (DCR)	476mOhm
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.295" L x 0.205" W (7.50mm x 5.20mm)
Height - Seated (Max)	0.071" (1.80mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	MP2A-330-ND,283-5254-6,MP2A-330,283-5254-2,MP2A-330-R-ND,283-5254-1
Standard Package	3,900
Win Source Part Number	1134762-MP2A-330-R
Ultra Librarian 3D Model	Ultra Librarian MP2A-330-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division MP2A-330-R is a fixed inductor with an inductance of 33 µH and a current rating of 790 mA.

Inductance: 33 µH
Current Rating: 790 mA
Tolerance: ±20%
DC Resistance: 476mOhm
Height: 0.071" (1.80mm)
Mounting: SMD (SMT)
Operating Temperature: -40°C ~ 85°C
Packaging: Tape & Reel
Status: Active
