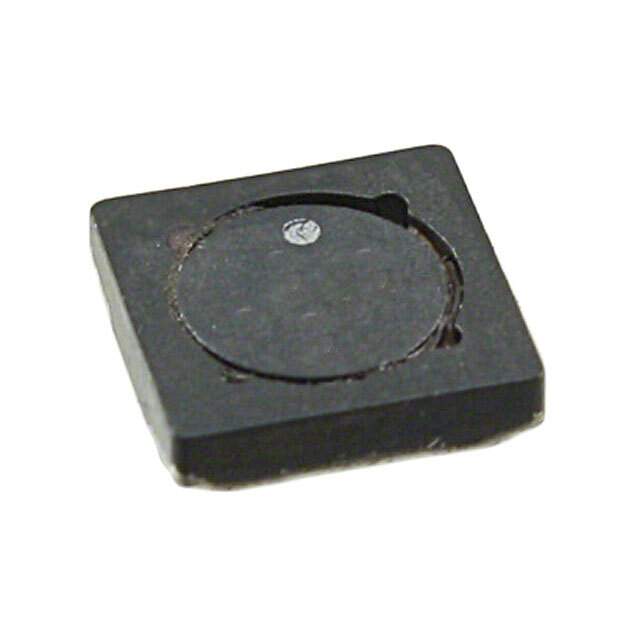

Same model may have multiple batches, images only for reference.

SD12-470-R

Name: SD12-470-R
Brand: Eaton Bussmann
SKU: 317089
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD12-470-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 47UH 428MA 1.37 OHM
Datasheet	SD12-470-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47μH
Tolerance	±20%
Current Rating	428mA
Current - Saturation	391mA
DC Resistance (DCR)	1.37 Ohm
Temperature Range - Operating	-40°C to 85°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	046797-SD12-470-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SD12-470-R CAD Model

Alternative Products

Description

The supply and demand status is balanced.

Type: wirewound type
Manufacturer: Eaton Bussmann
Current Rating: 428mA
Inductance: 47μH
DCR: 1.37 Ohm
Operating Temperature Range: -40°C to 85°C
