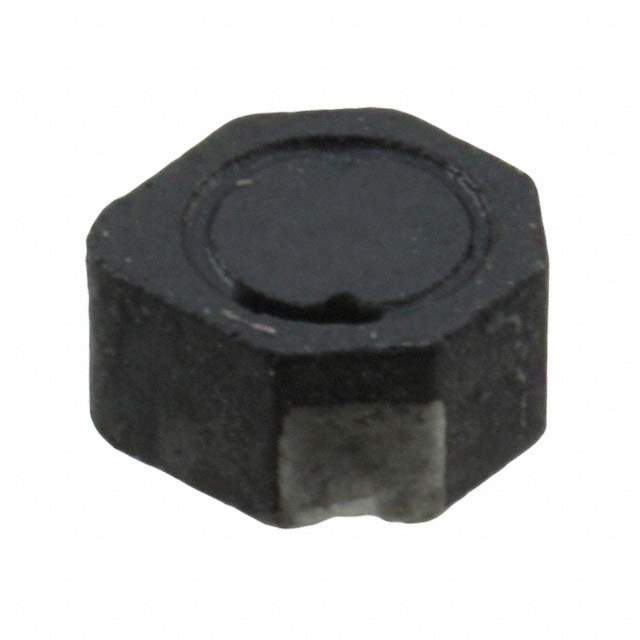

SD3118-4R7-R Real Image
Same model may have multiple batches, images only for reference.

SD3118-4R7-R

Part No SD3118-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.02A 162 MOHM
Datasheet
SD3118-4R7-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.02A
Current - Saturation 1.31A
DC Resistance (DCR) 162 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 1094994-SD3118-4R7-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD3118-4R7-R CAD Model

Description

The Eaton 1094994-SD3118-4R7-R is a wirewound inductor that is designed for use in various electronic circuits.

  • Current Rating: 1.02A
  • Inductance: 4.7μH
  • Tolerance: ±30%
  • Material: Ferrite
  • Current Saturation: 1.31A
  • DC Resistance: 162 mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Mounting: Surface Mount Technology (SMT)
  • Package: Reel - TR
  • Suitable For: Inductors, coils, and chokes.
