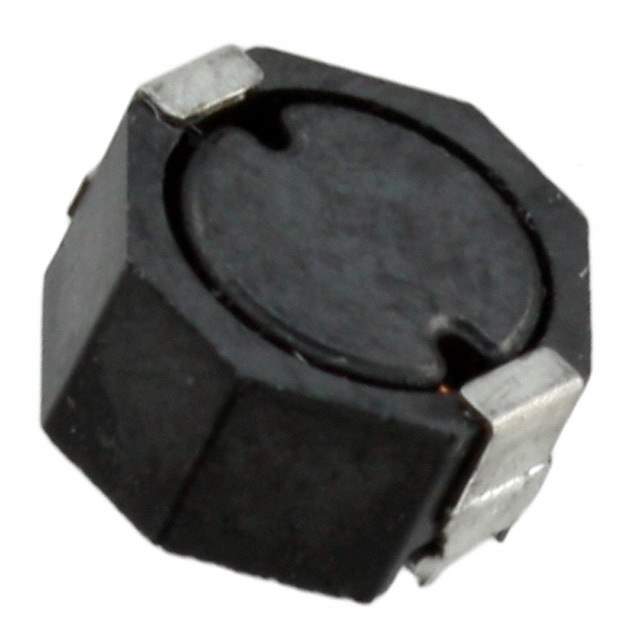

Same model may have multiple batches, images only for reference.

SD53-470-R

Name: SD53-470-R
Brand: Eaton Bussmann
SKU: 1014314
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SD53-470-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 47UH 640MA 352MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 640 mA 352mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	SD53
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±20%
Current Rating (Amps)	640 mA
Current - Saturation (Isat)	640mA
Shielding	Shielded
DC Resistance (DCR)	352mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	513-1460-1,SD53470R,513-1460-6,513-1460-2
Standard Package	2,600
Win Source Part Number	1014314-SD53-470-R
Ultra Librarian 3D Model	Ultra Librarian SD53-470-R CAD Model

Alternative Products

Description

The SD53-470-R fixed inductor from Eaton - Electronics Division is a drum core, wirewound inductor with a shielding feature.

Inductance: 47 µH
Tolerance: ±20%
DC Resistance (DCR): 352mOhm Max
Current Rating: 640 mA
Height: 0.118" (3.00mm)
Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Mounting: surface mount technology (SMT)
Package: tape & reel
Temperature Range: -40°C ~ 125°C
