Same model may have multiple batches, images only for reference.

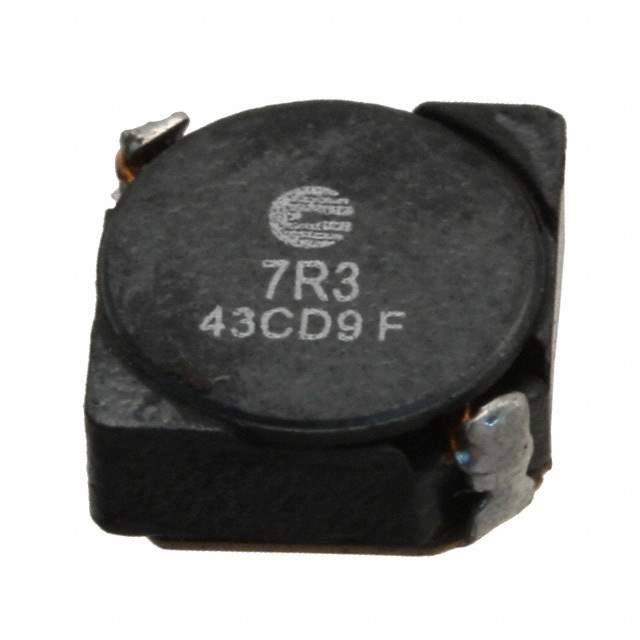

SD7030-7R3-R Real Image
Same model may have multiple batches, images only for reference.

SD7030-7R3-R

Part No SD7030-7R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 7UH 2.3A 54 MOHM SMD / 7 µH Shielded Drum Core, Wirewound Inductor 2.3 A 54mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 7 µH
Tolerance ±30%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 513-1483-6,513-1483-1,513-1483-2,SD70307R3R
Standard Package 1,500
Win Source Part Number 1327533-SD7030-7R3-R
Ultra Librarian 3D Model Ultra Librarian SD7030-7R3-R CAD Model

Description

The Eaton - Electronics Division 1327533-SD7030-7R3-R is a drum core, wirewound type inductor with a shielding feature.

  • Type: Drum Core, Wirewound
  • Shielding: Shielding
  • Inductance: 7 µH
  • Current Rating: 2.3A
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Height: 0.118" (3.00mm)
  • Size or Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • DC Resistance (DCR): 54mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Category: Inductors, Coils, Chokes
  • RoHS Compliant: Yes
