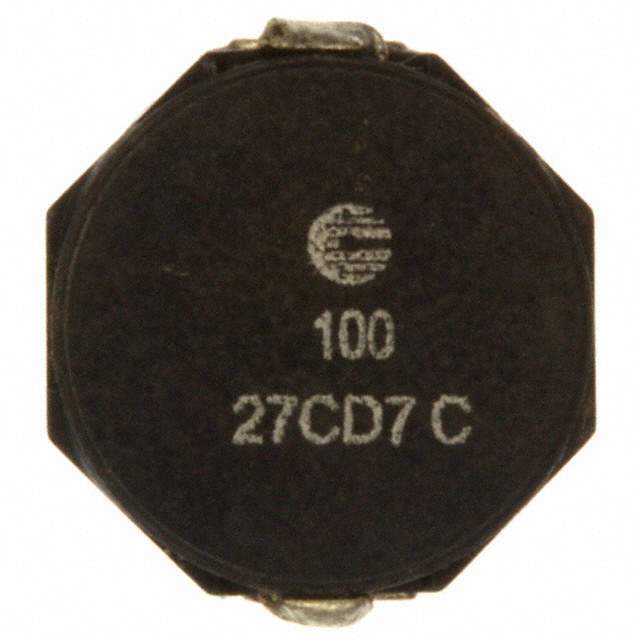

Same model may have multiple batches, images only for reference.

SD8328-100-R

Name: SD8328-100-R
Brand: Eaton Bussmann
SKU: 974600
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD8328-100-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 10UH 3.3A 45 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3.3 A 45mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	SD8328
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	3.3 A
Current - Saturation (Isat)	2.6A
Shielding	Shielded
DC Resistance (DCR)	45mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.374" L x 0.327" W (9.50mm x 8.30mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SD8328100R,Q4484223,513-1494-6,513-1494-1,513-1494-2
Standard Package	1,280
Win Source Part Number	974600-SD8328-100-R
Ultra Librarian 3D Model	Ultra Librarian SD8328-100-R CAD Model

Alternative Products

Description

The SD8328 series fixed inductor is designed to provide high inductance and shielding in electronic circuits.

Inductance: 10 µH
Tolerance: ±30%
Current: 3.3A
DC Resistance (DCR): 45mOhm Max
Shielded: Yes
Package/Case: Nonstandard
Mounting: Surface Mount
Operating Temperature: -40°C ~ 125°C
ECCN: EAR99
Manufacturer: Eaton - Electronics Division
