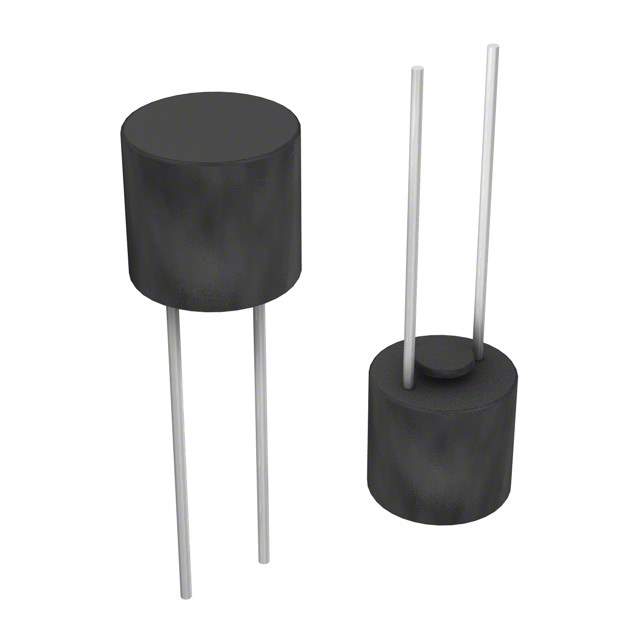

SR-5H-3.15A-AP Real Image
Same model may have multiple batches, images only for reference.

SR-5H-3.15A-AP

Part No SR-5H-3.15A-AP
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 3.15A 300VAC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 14 Weeks
Features 3.15 A 300 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
Manufacturer Eaton Bussmann
Series SR-5H
Package Cut Tape (CT), Tape & Box (TB)
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package Radial, Can, Vertical
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number SR-5H-3.15A-AP-ND, SR-5H-3-15A-AP, 283-5267-6, 283-5267-6INACTIVE, 283-5267-3, 283-5267-6-ND, 283-5267-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934948-SR-5H-3.15A-AP
Ultra Librarian 3D Model Ultra Librarian SR-5H-3.15A-AP CAD Model

Description

The Eaton Bussmann fuse 934948-SR-5H-3.15A-AP is a high-quality component used in various electronic devices.

  • Current Rating: 3.15A
  • Voltage Rating: 300V AC and DC
  • Mounting: Through-hole
  • Package: Radial, can, vertical
  • Quantity per package: 1000
  • Estimated Production Lead Time: 14 weeks
