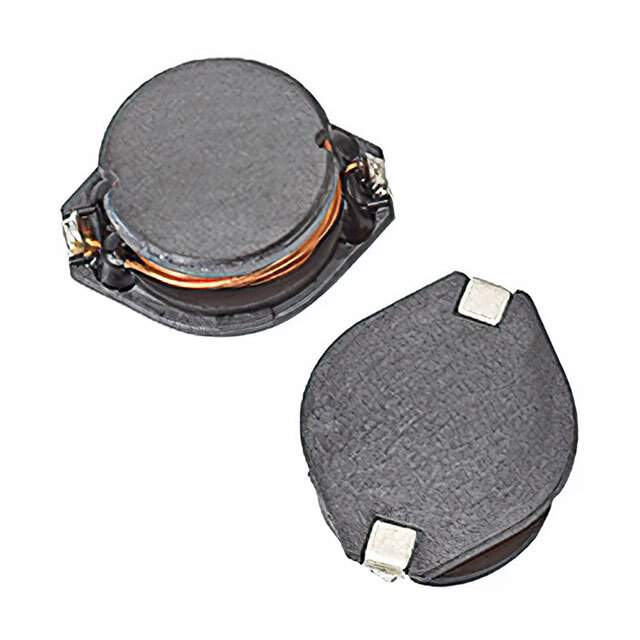

Same model may have multiple batches, images only for reference.

UP5-221-R

Name: UP5-221-R
Brand: Eaton Bussmann
SKU: 388897
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UP5-221-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 220UH 1.2A 380 MOHM
Datasheet	UP5-221-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Active
Type	Wirewound
Inductance	220μH
Tolerance	±20%
Current Rating	1.2A
Current - Saturation	2.4A
DC Resistance (DCR)	380 mOhm Max
Frequency - Self Resonant	3.7MHz
Temperature Range - Operating	-25°C to 105°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.295" (7.50mm)
Win Source Part Number	048560-UP5-221-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UP5-221-R CAD Model

Alternative Products

Description

It is an inductor, coil, and choke with a wirewound type and a current rating of 1.2A.

Type: Wirewound
Current Rating: 1.2A
Inductance: 220μH
Saturation Current: 2.4A
Self-Resonant Frequency: 3.7MHz
DCR: 380 mOhm max
Tolerance: ±20%
Temperature Range: Operating -25°C to 105°C
