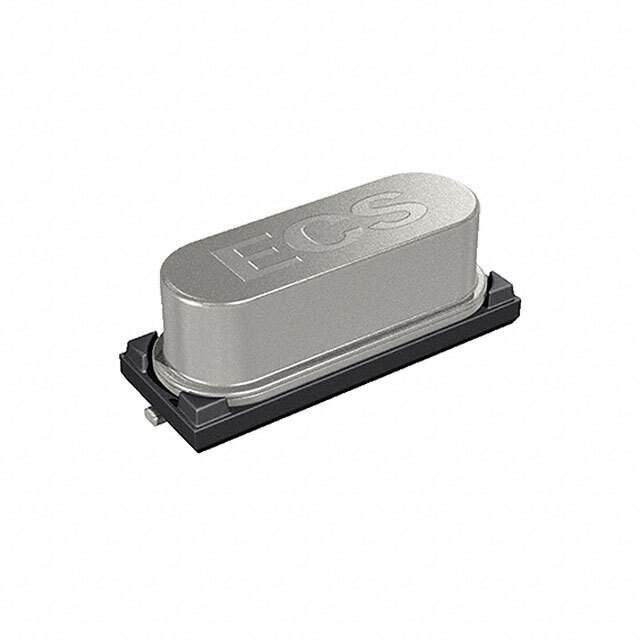

ECS-160-20-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-160-20-5PX-TR

Part No ECS-160-20-5PX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 20PF SMD
Datasheet
ECS-160-20-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 21 Weeks
Features ±30ppm Crystal 20pF HC-49/US
Manufacturer ECS Inc.
Series CSM-7X
Package Reel - TR
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package HC-49/US
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number Q2158051, XC1282DKR, XC1282TR, XC1282CT, Q2158051A, ECS-160-20-5PX-TR-ND, ECS160205PXTR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917796-ECS-160-20-5PX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-160-20-5PX-TR CAD Model

Description

The ECS-160-20-5PX-TR is a crystal manufactured by ECS Inc.

  • Series: CSM-7X
  • Operating Temperature: -10°C ~ 70°C
  • Features: ±30ppm crystal 20pF HC-49/US
  • Package: HC-49/US
  • Supply and Demand Status: balance
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 21 weeks
