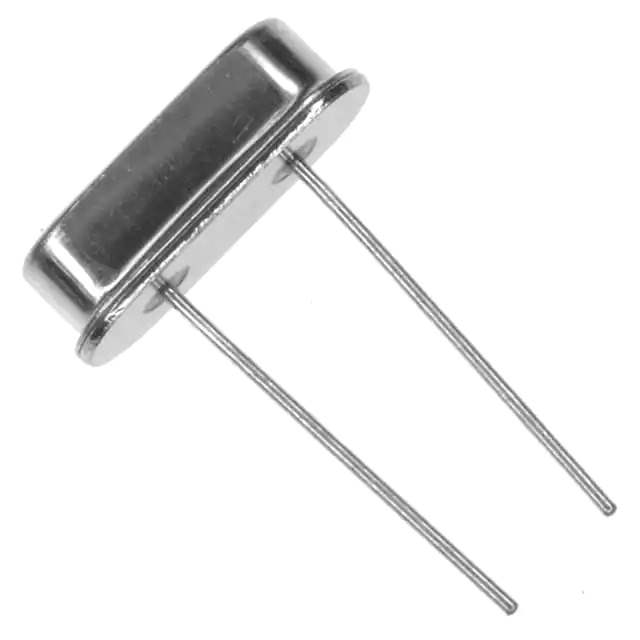

ECS-250-18-4X-F Real Image
Same model may have multiple batches, images only for reference.

ECS-250-18-4X-F

Part No ECS-250-18-4X-F
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF TH / 25 MHz ±30ppm Crystal 18pF 30 Ohms HC-49/US
Datasheet
ECS-250-18-4X-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series HC-49USX
Package Bulk
Product Status Active
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 917800-ECS-250-18-4X-F
Ultra Librarian 3D Model Ultra Librarian ECS-250-18-4X-F CAD Model

Description

The HC-49USX series crystal is a high-quality component designed for clock and timing applications.

  • Frequency: 25MHz
  • Frequency Tolerance: ±30ppm
  • Size: 0.447" length and 0.183" width
  • Mounting: through-hole
  • ESR: 30 Ohms
  • Temperature Range: -10°C to 70°C
  • Package: bulk format
