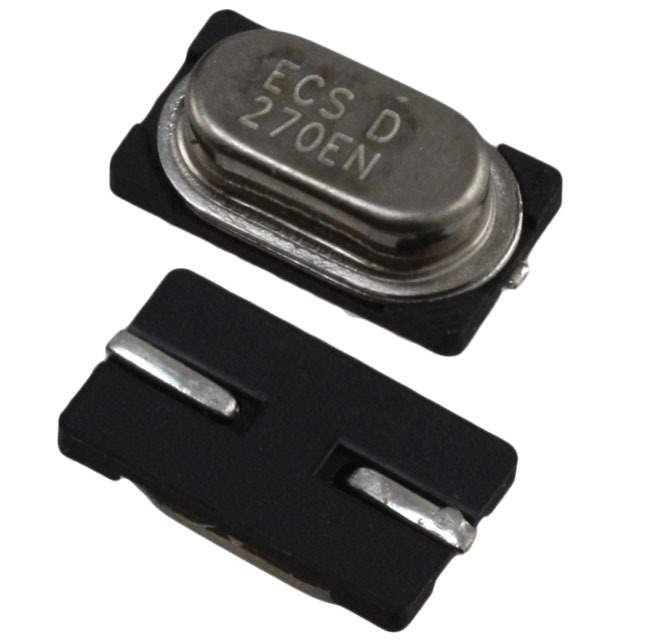

ECS-120-20-3X-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-120-20-3X-TR

Part No ECS-120-20-3X-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 20PF SMD / 12 MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US
Datasheet
ECS-120-20-3X-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.276" L x 0.161" W (7.00mm x 4.10mm)
Height - Seated (Max) 0.091" (2.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number ECS120203XTR,XC1770CT,XC1770TR,XC1770DKR
Standard Package 3,000
Win Source Part Number 1328326-ECS-120-20-3X-TR
Ultra Librarian 3D Model Ultra Librarian ECS-120-20-3X-TR CAD Model

Description

The ECS Inc. ECS-120-20-3X-TR is an MHz crystal that comes in a standard package of 3,000 from ECS Inc.

  • Frequency: 12 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Package: HC-49/US
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -10°C ~ 70°C
  • ROHS3 Compliant: Yes
  • HTSUS: 8541.60.0050
