Same model may have multiple batches, images only for reference.

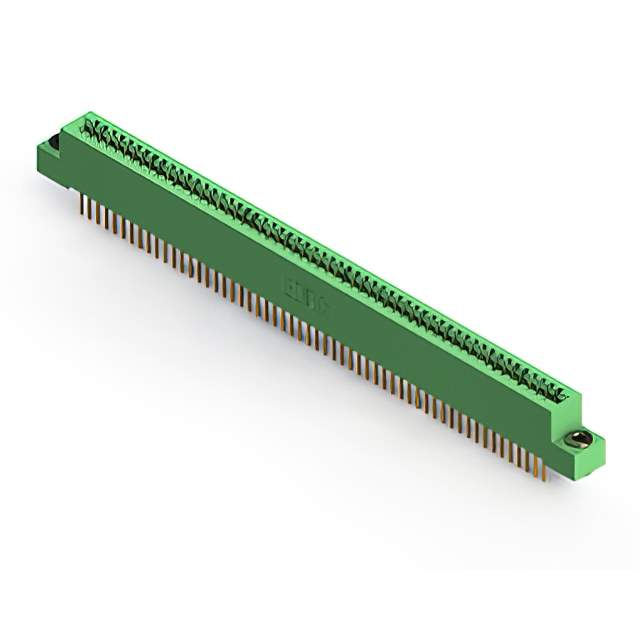

342-112-542-203 Real Image
Same model may have multiple batches, images only for reference.

342-112-542-203

Part No 342-112-542-203
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 342 SERIES (.100" (2.54MM) CONTA / 112 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
342-112-542-203 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 342
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 56
Number of Positions 112
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 342-112
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-342-112-542-203
Standard Package 25
Win Source Part Number 1034426-342-112-542-203
Ultra Librarian 3D Model Ultra Librarian 342-112-542-203 CAD Model

Description

The EDAC Inc. 151-342-112-542-203 is a connector product that is ideal for electronic devices that require a through-hole mounting type.

  • Mounting Type: Through-Hole
  • Gender: Female
  • Read Out: Dual Edge
  • Alternative Parts: None
  • REACH: Unaffected
  • Category: Connectors, Interconnects
  • ECCN: EAR99
  • Manufacturer: EDAC Inc.
