Same model may have multiple batches, images only for reference.

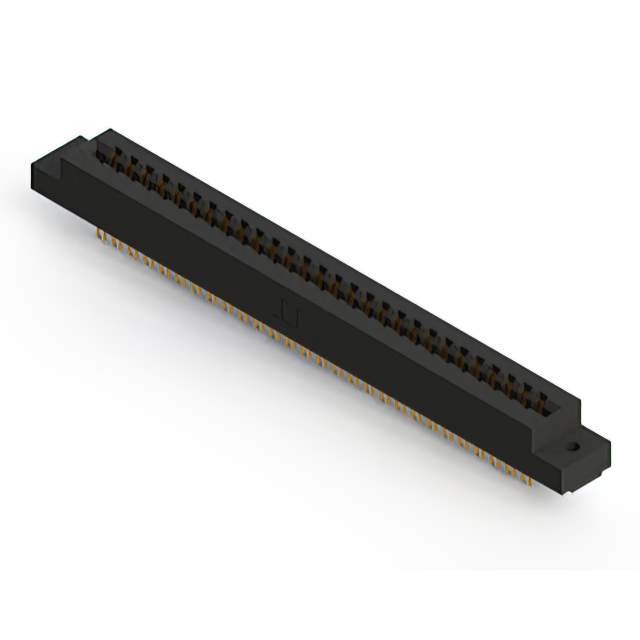

355-056-500-202 Real Image
Same model may have multiple batches, images only for reference.

355-056-500-202

Part No 355-056-500-202
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 56POS 0.156 / 56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Datasheet
355-056-500-202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 355
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 28
Number of Positions 56
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Mounting Type Panel Mount
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 355-056
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 25
Win Source Part Number 1038264-355-056-500-202
Ultra Librarian 3D Model Ultra Librarian 355-056-500-202 CAD Model

Description

The 355-056-500-202 is a card edge connector from EDAC Inc. that has 56 positions and a pitch of 0.156" (3.96mm).

  • Manufacturer: EDAC Inc.
  • Positions: 56
  • Pitch: 0.156" (3.96mm)
  • Contact Type: Semi-Bellows
  • Mounting Type: Panel Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: Bulk
  • Standard Package: 25
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Applications: Telecommunications, Medical Equipment, and Industrial Control Systems
