Same model may have multiple batches, images only for reference.

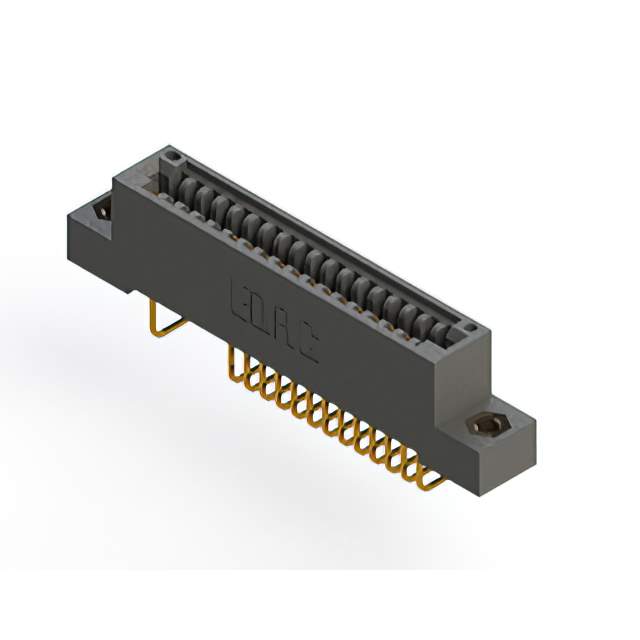

395-018-558-107 Real Image
Same model may have multiple batches, images only for reference.

395-018-558-107

Part No 395-018-558-107
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 395 SERIES (.100" (2.54MM) CONTA / 18 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
395-018-558-107 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 18
Number of Positions 18
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Flush Mount, Top Opening, Threaded Insert, M3
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 395-018
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-018-558-107
Standard Package 25
Win Source Part Number 1026107-395-018-558-107
Ultra Librarian 3D Model Ultra Librarian 395-018-558-107 CAD Model

Description

The EDAC Inc. 395-018-558-107 is a high-quality card edge connector that is designed for use in various electronic devices.

  • Supply and Demand Status: Currently unaffected by REACH
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Temperature Range: -40°C to 105°C
