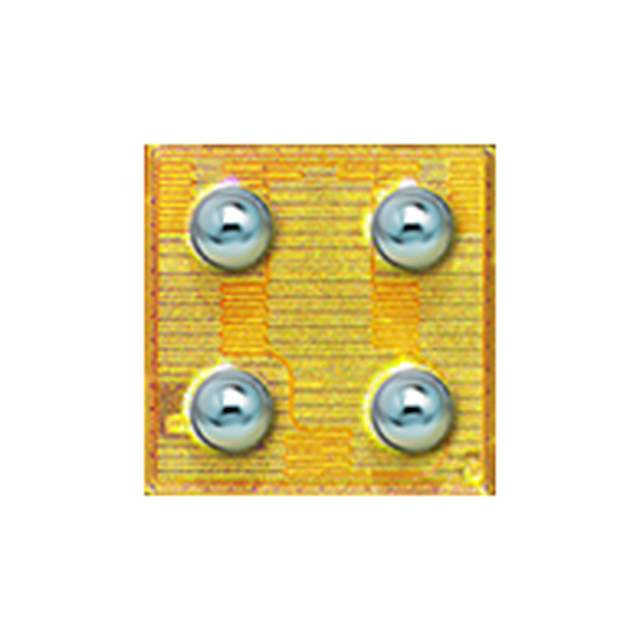

The EPC2203 is a N-Channel GaNFET (Gallium Nitride) transistor that is a part of the automotive, AEC-Q101, eGaN series.

• Series: Automotive, AEC-Q101, eGaN
• Win Source Part Number: 1146122-EPC2203
• Mounting: SMD (SMT)
• Package: Die
• Drain to Source Voltage (Vdss): 80 V
• Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
• Rds On (Max) @ Id, Vgs: 80mOhm @ 1A, 5V
• Vgs(th) (Max) @ Id: 2.5V @ 600μA
• Gate Charge (Qg) (Max) @ Vgs: 0.83 nC @ 5 V
• Input Capacitance (Ciss) (Max) @ Vds: 88 pF @ 50 V
• Vgs (Max): +5.75V, -4V
• Operating Temperature: -40°C ~ 150°C (TJ)
