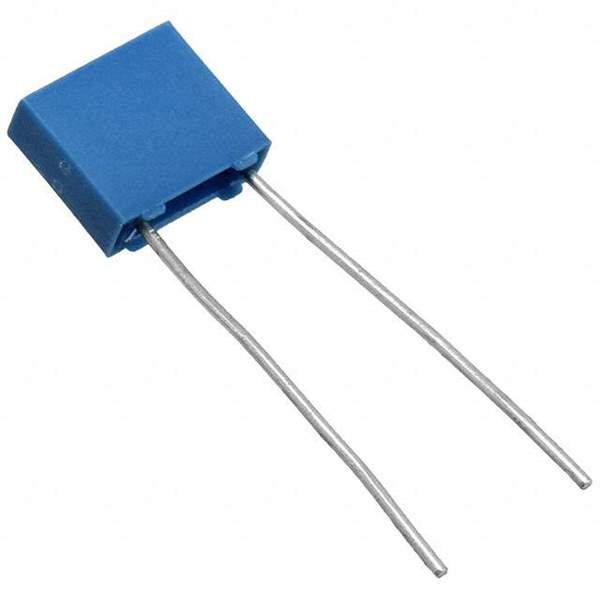

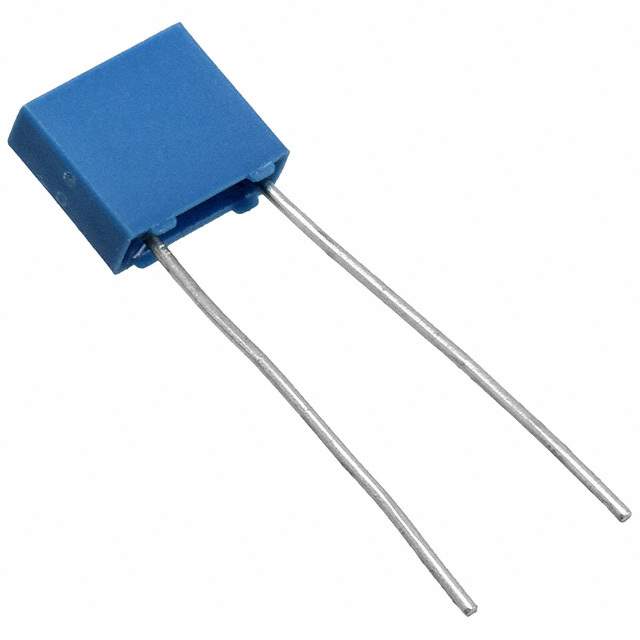

The EPCOS (TDK) B32529C3103K289 is a metalized polypropylene film capacitor designed for a broad spectrum of electronic applications. This capacitor is part of the B32529 series, known for its robust construction and reliable performance in demanding environments. It offers excellent electrical characteristics and a long operational lifespan.

Applications

• Power factor correction (PFC): Improving power quality in electronic devices and industrial equipment.
• DC linking: Smoothing DC voltage in inverters and power supplies.
• Snubber circuits: Protecting switching devices from voltage transients.
• Resonant circuits: Used in induction heating and wireless power transfer systems.
• Energy storage: Storing electrical energy in various applications.

Features

• High pulse strength: Handles high current and voltage pulses without degradation.
• Low ESR (Equivalent Series Resistance): Minimizes power losses and heat generation.
• Self-healing properties: Recovers from dielectric breakdowns, extending lifespan.
• Flame-retardant epoxy resin coating: Provides protection against environmental factors.
• RoHS compliant: Compliant with environmental regulations.

Benefits

• Increased system reliability: Ensures stable and consistent performance.
• Reduced energy consumption: Minimizes power losses in electronic circuits.
• Extended product lifespan: Offers long-term reliability.
• Improved safety: Provides protection against electrical hazards.
• Environmental friendliness: Complies with environmental regulations.

Additional Details

The B32529C3103K289 capacitor is constructed using a metalized polypropylene film dielectric, which provides excellent electrical characteristics and a high insulation resistance. The capacitor is housed in a flame-retardant epoxy resin coating for environmental protection and enhanced safety. Specific electrical parameters include capacitance (10nF), voltage rating, tolerance, and operating temperature range. It's essential to refer to the official EPCOS (TDK) datasheet for detailed specifications and operating guidelines to ensure proper application and performance. The capacitor is available in various lead configurations for easy mounting on printed circuit boards (PCBs). The self-healing properties of the metalized film allow the capacitor to recover from minor dielectric breakdowns, significantly extending its operational lifespan.
