Same model may have multiple batches, images only for reference.

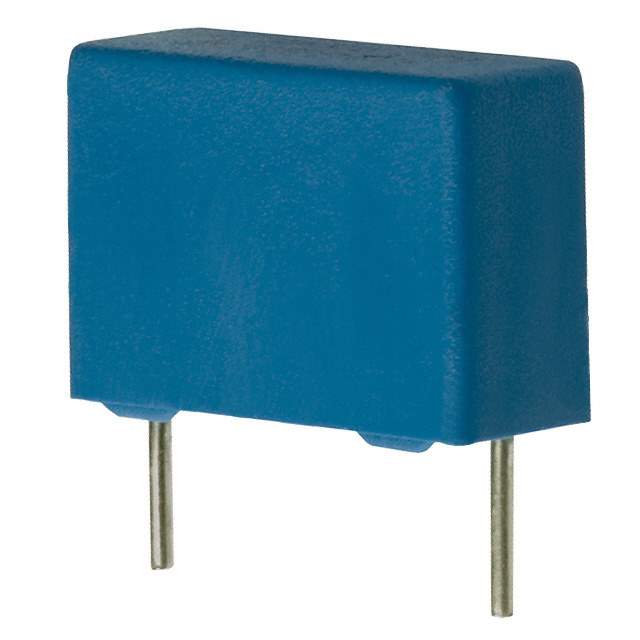

B32922C3684M000 Real Image
Same model may have multiple batches, images only for reference.

B32922C3684M000

Part No B32922C3684M000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.68UF 20% 630VDC RAD / 0.68 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3292*C/D - X2 Standard
Package Bulk
Capacitance 0.68 µF
Tolerance ±20%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.433" W (18.00mm x 11.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32922C3684M,495-2323
Standard Package 300
Win Source Part Number 1171305-B32922C3684M000
Ultra Librarian 3D Model Ultra Librarian B32922C3684M000 CAD Model

Description

The B3292*C/D - X2 Standard capacitor series is a bulk package through-hole radial capacitor from EPCOS - TDK Electronics.

  • Capacitance: 0.68 µF
  • Tolerance: ±20%
  • Voltage Rating: 305V AC and 630V DC
  • Dielectric Material: Polypropylene (PP)
  • Suitable For: EMI and RFI suppression applications
  • Height Seated: 0.728" (18.50mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Operating Temperature Range: -40°C to 110°C
