B59758B0110A070EPCOS - TDK Electronics

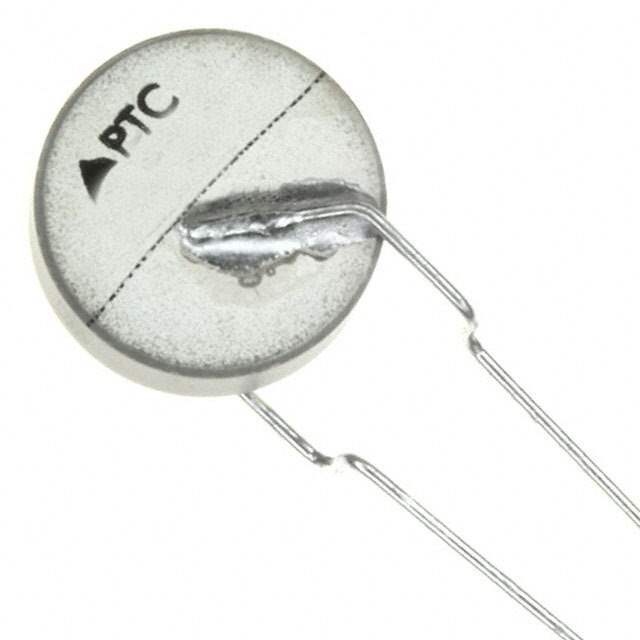

Same model may have multiple batches, images only for reference.

B59758B0110A070

Part No B59758B0110A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 1.0KV RADIAL DISC
Datasheet
B59758B0110A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Category Circuit Protection PTC Resettable Fuses
Part Status Obsolete
Type Ceramic
Voltage - Max 1.0kV
Current - Trip (It) 17 mA
Current - Max 500 mA
Resistance - 25°C (Typ) 7.5 kOhms
Operating Temperature 0°C ~ 60°C
Mounting Type Through Hole
Size / Dimension 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Lead Spacing 0.197" (5.00mm)
Ultra Librarian 3D Model Ultra Librarian B59758B0110A070 CAD Model

Description

Ceramic PTC Resettable Fuse 1.0kV Ih Through Hole Radial, Disc
