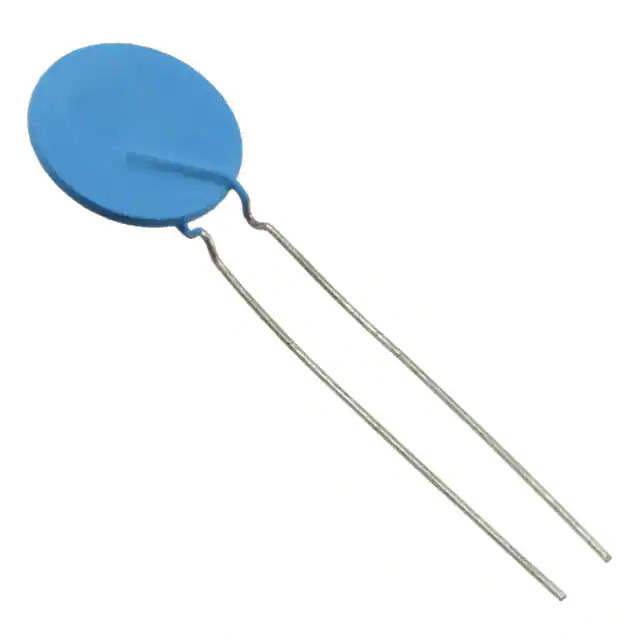

Part No B59945C0160A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 20V 1.5A RADIAL / Ceramic PTC Resettable Fuse 20V 1.5 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS (TDK)
Series Automotive, AEC-Q200
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 20V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3.05 A
Current - Max 8 A
Resistance - 25°C (Typ) 450 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.689" Dia x 0.138" T (17.50mm x 3.50mm)
Height - Seated (Max) 0.827" (21.00mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 846005-B59945C0160A070
Ultra Librarian 3D Model Ultra Librarian B59945C0160A070 CAD Model

Description

The 846005-B59945C0160A070 is a ceramic PTC resettable fuse from the Automotive series by EPCOS (TDK).

  • Application: Circuit Protection, Automotive
  • Compliance: AEC-Q200
  • Maximum Voltage: 20V
  • Maximum Current: 8A
  • Size: 0.689" Dia x 0.138" T (17.50mm x 3.50mm)
  • Seated Height: 0.827" (21.00mm)
  • Mounting Type: Through Hole
  • Package: Radial, Disc
  • Operating Temperature: -40°C to 85°C
  • Resistance @ 25°C: 450 mOhms
