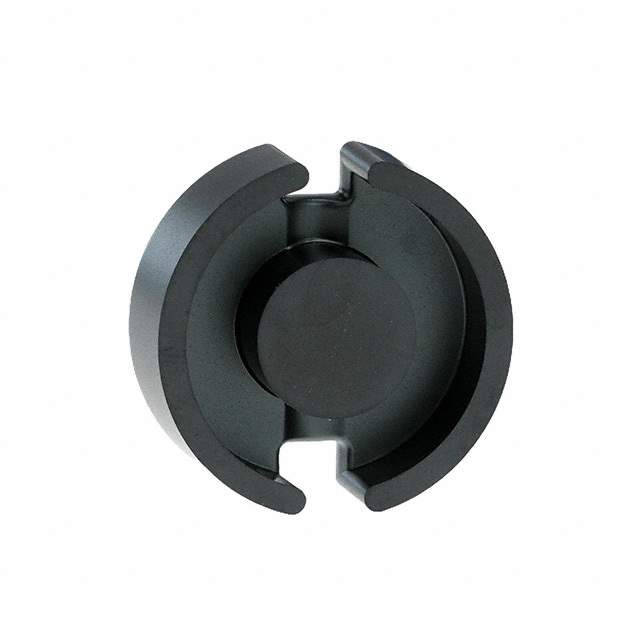

B65701W0000R087 Real Image
Same model may have multiple batches, images only for reference.

B65701W0000R087

Part No B65701W0000R087
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE P 6.4UH N87 2PCS / Uncoated N87 Ferrite Core P (Pot Core) Type Length Width 1.200" (30.50mm) Diameter 0.374" (9.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components - Ferrite Cores
Mfr EPCOS - TDK Electronics
Series P30/19
Package Box
Core Type P (Pot Core)
Supplier Device Package P 30 x 19
Material N87
Diameter 1.200" (30.50mm)
Inductance Factor (Al) 6.4 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1620
Initial Permeability (µi) 2200
Core Factor (ΣI/A) mm<sup>-1</sup> 0.32
Effective Length (le) mm 46
Effective Area (Ae) mm² 145
Minimum Core Cross Section (Amin) mm² 117
Effective Magnetic Volume (Ve) mm³ 6670
Finish Uncoated
Height 0.374" (9.50mm)
Standard Package 160
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1351222-B65701W0000R087
Ultra Librarian 3D Model Ultra Librarian B65701W0000R087 CAD Model

Description

The P30/19 series P pot core ferrite core is manufactured by EPCOS - TDK Electronics.

  • Height: 0.374" (9.50mm)
  • Diameter: 1.200" (30.50mm)
  • Inductance Factor (Al): 6.4 µH
  • Material: N87
  • Gap: Ungapped
  • Tolerance: -20%, +30%
  • Supplier Device Package: P 30 x 19
  • Package: Box
  • Standard Package: 160
  • ROHS: Compliant
  • REACH: Unaffected
