9478205002

Part No 9478205002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores

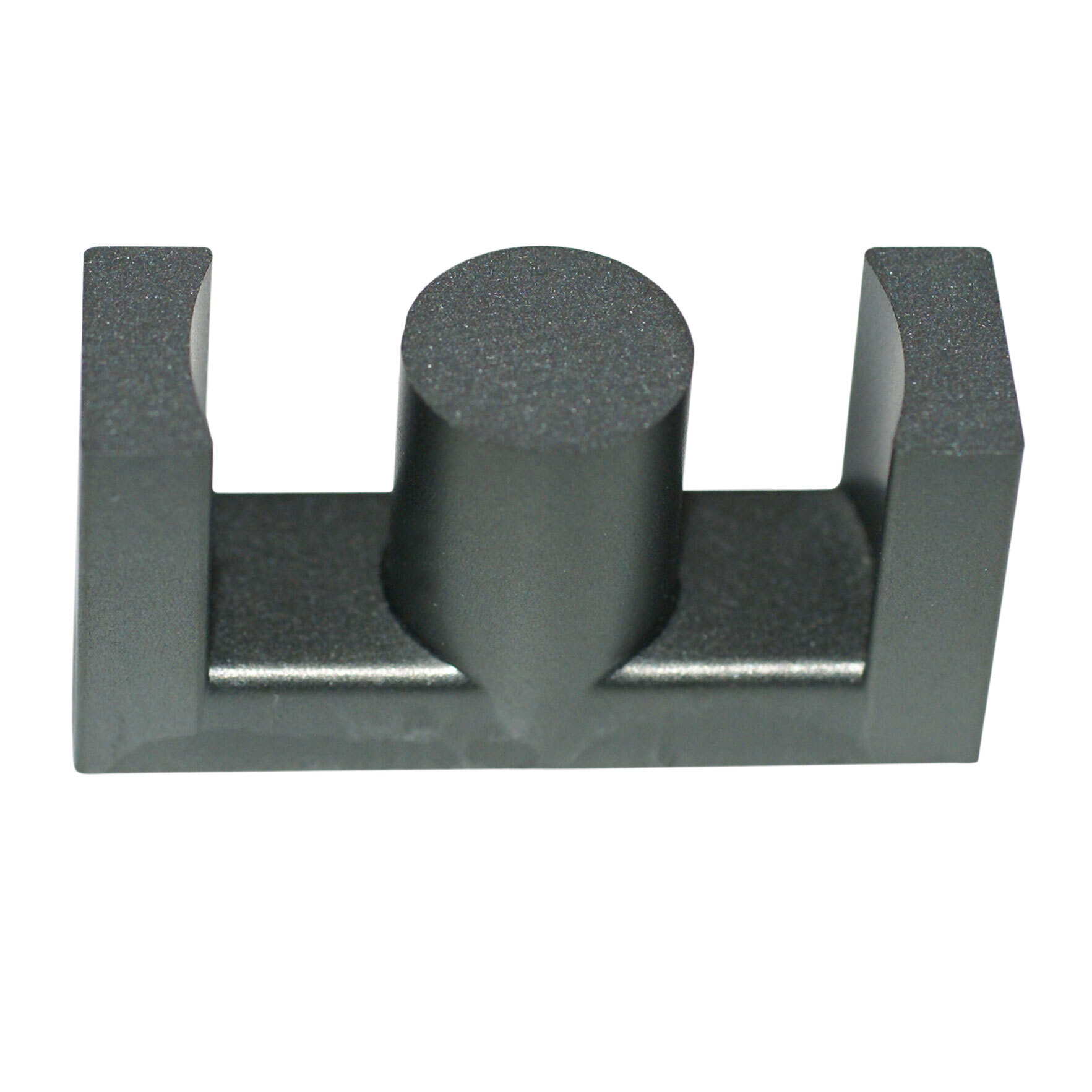

Description FERRITE CORE E 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 30.0
Effective Length (le) mm 52.9
Effective Area (Ae) mm2 190.0
Minimum Core Cross Section (Amin) mm2 180.0
Effective Magnetic Volume (Ve) mm3 10100.0
Finish Uncoated
Height 0.325" (8.26mm)
Length 1.500" (38.10mm)
Width 1.000\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528147-9478205002
Ultra Librarian 3D Model Ultra Librarian 9478205002 CAD Model
