Same model may have multiple batches, images only for reference.

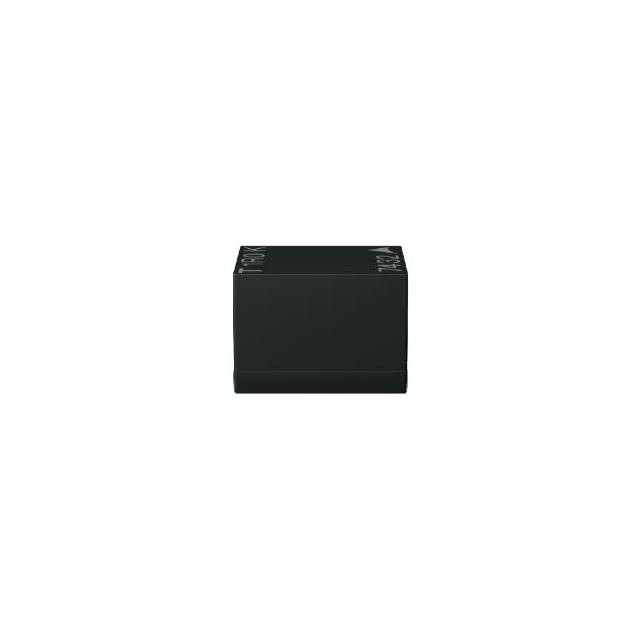

B82432T1823K000 Real Image
Same model may have multiple batches, images only for reference.

B82432T1823K000

Part No B82432T1823K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 82UH 220MA 3 OHM SMD / Inductor RF Molded Wirewound 82uH 10% 2.52MHz 10Q-Factor Ferrite 0.22A 3Ohm DCR 1812 Automotive T/R
Datasheet
B82432T1823K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series SIMID
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 82μH
Tolerance ±10%
Current Rating 220mA
Shielding Unshielded
DC Resistance (DCR) 3 Ohm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Operating Temperature Range -55°C ~ 150°C
Test Frequency 2.52MHz
Mounting SMD
Package 2-SMD
Manufacturer Package 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.134" (3.40mm)
Win Source Part Number 769570-B82432T1823K000
Popularity Medium
Supply and Demand Status Limited
Family Name B82432T
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82432T1823K000 CAD Model

Description

The B82432T1823K000 is a wirewound inductor manufactured by EPCOS.

  • Inductance: 82μH
  • Current Rating: 220mA
  • Tolerance: ±10%
  • Shielding: Unshielded
  • Operating Temperature Range: -55°C to 150°C
  • Rating: AEC-Q200
  • Package: 2-SMD
  • Material-Core: Ferrite
  • Dimension: 0.177” L x 0.126” W (4.50mm x 3.20mm)
  • Height-Seated (Maximum): 0.134” (3.40mm)
  • DC Resistance (DCR): 3 Ohm Max
  • Q @ Freq: 10 @ 2.52MHz
  • Frequency-Self Resonant: 7MHz
  • Test Frequency: 2.52MHz
  • Manufacturer Package: 1812 (4532 Metric)
  • EOL Date: 2025
