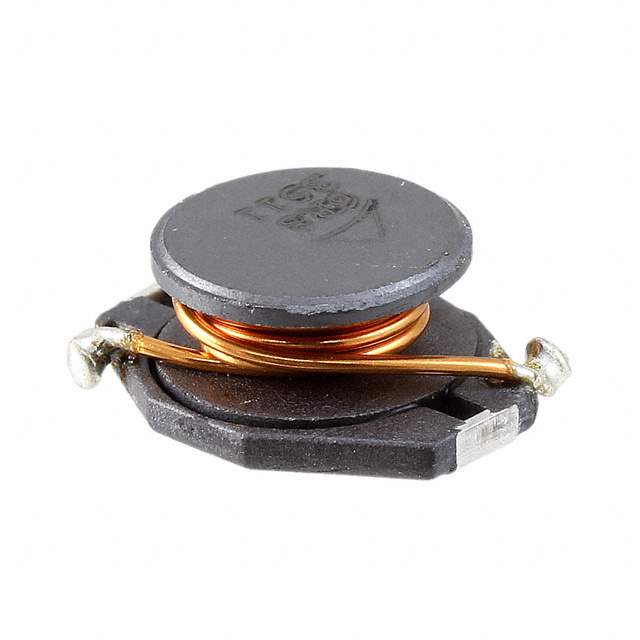

B82476B1223M100 Real Image
Same model may have multiple batches, images only for reference.

B82476B1223M100

Part No B82476B1223M100
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 2.95A 50 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 17 Weeks
Features Unshielded Wirewound Inductor 50mOhm Max Nonstandard
Manufacturer EPCOS (TDK)
Series B82476B1
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 495-5833-6, 495-5833-1, 495-5833-2
Quantity per package 750
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863250-B82476B1223M100
Ultra Librarian 3D Model Ultra Librarian B82476B1223M100 CAD Model

Description

The EPCOS (TDK) 863250-B82476B1223M100 is an unshielded wirewound inductor with a 50mOhm maximum nonstandard feature.

  • Series: B82476B1
  • Package: Nonstandard reel - TR
  • Mounting: Surface Mountable
  • Operating Temperature Range: -55°C to 150°C
  • Quantity per Package: 750
  • Estimated Production Lead Time: 17 weeks
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Other Part Numbers: 495-5833-6, 495-5833-1, and 495-5833-2
  • Shielding: Unshielded
  • Type: Wirewound
  • Resistance: 50mOhm (Max)
