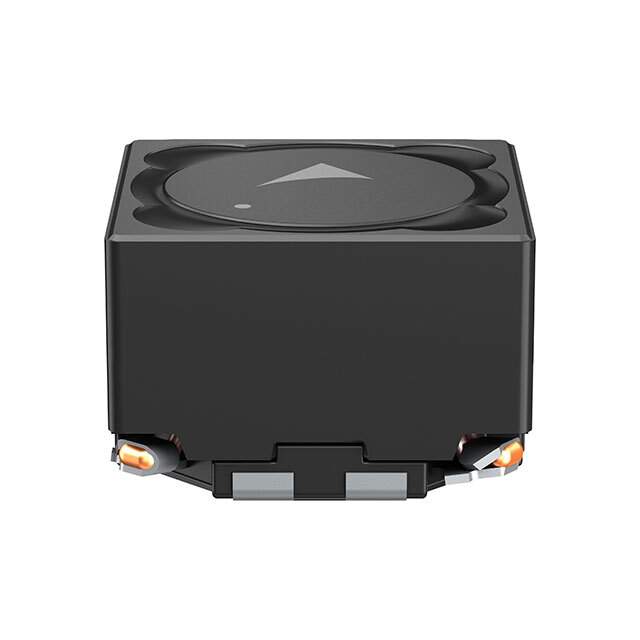

B82477D4223M900

Part No B82477D4223M900
Manufacturer EPCOS (TDK)
Catalog Arrays, Signal Transformers
Description FIXED IND 22UH 3.11A 78 MOHM SMD / Shielded 2 Coil Inductor Array 88 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 39mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr EPCOS - TDK Electronics
Series B82477D4*M900
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 22 µH
Inductance - Connected In Series 88 µH
Tolerance ±20%
Current Rating - Series 3.11 A
Current Saturation - Parallel 4.5 A
Current Saturation - Series 2.25 A
DC Resistance (DCR) - Parallel 39mOhm Max
DC Resistance (DCR) - Series 156mOhm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.335" (8.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 495-B82477D4223M900DKR,495-B82477D4223M900TR,495-B82477D4223M900CT,B82477D4223M9
Standard Package 350
Win Source Part Number 1003955-B82477D4223M900
Ultra Librarian 3D Model Ultra Librarian B82477D4223M900 CAD Model

Description

The B82477D4*M900 series inductor array from EPCOS - TDK Electronics is a high-performance component that is designed for use in applications that require high inductance.

  • Inductance (Series): 88 μH
  • Inductance (Parallel): 22 μH
  • Shielding: Shielded
  • Current Rating (Series): 3.11 A
  • Current Rating (Parallel): 4.5 A
  • DC Resistance (Series): 156 mΩ
  • DC Resistance (Parallel): 39 mΩ
  • Mounting Technology: SMD (SMT)
  • Temperature Range: -55°C to 150°C
  • Package: Tape and reel
