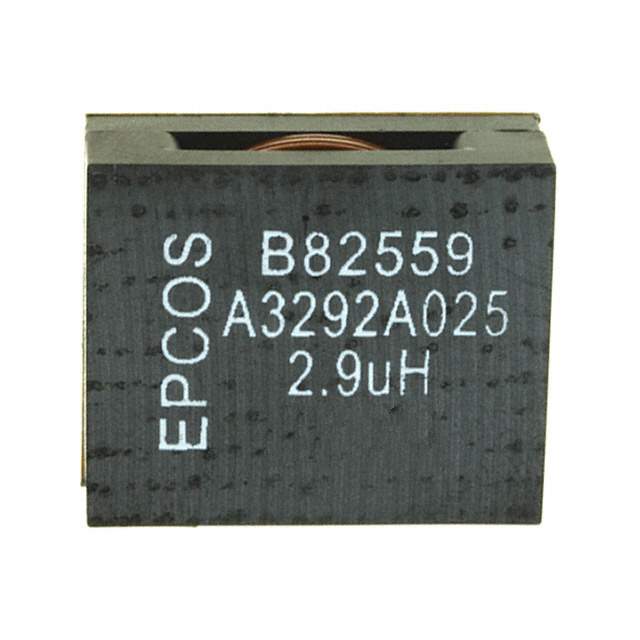

B82559A3292A025 Real Image
Same model may have multiple batches, images only for reference.

B82559A3292A025

Part No B82559A3292A025
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 2.9UH 1 MOHM SMD / 2.9 µH Shielded Drum Core, Wirewound Inductor 1mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series ERU25 - Flat Wire Inductor
Package Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.9 µH
Tolerance ±7%
Current - Saturation (Isat) 33A
Shielding Shielded
DC Resistance (DCR) 1mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.996" L x 0.925" W (25.30mm x 23.50mm)
Height - Seated (Max) 0.394" (10.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names B82559A3292A 25,B82559A3292A25,495-3455-2INACTIVE,495-3455-6-ND,495-3455-6INACTIVE,495-3455-ND,495-B82559A3292A025,495-3455-2,495-3455-2-ND,495-3455-1,495-3455-1-ND,495-3455-6,495-3455
Standard Package 280
Win Source Part Number 1176014-B82559A3292A025
Ultra Librarian 3D Model Ultra Librarian B82559A3292A025 CAD Model

Description

The EPCOS (TDK) ERU25 flat wire inductor is an ideal component for various applications.

  • Type: Drum core, wirewound, shielded
  • Inductance: 2.9 μH
  • Tolerance: ±7%
  • Mounting: Surface-mount
  • Standard Package: 280
  • Dimension: 0.996" L x 0.925" W (25.30mm x 23.50mm)
  • Height: 0.394" (10.00mm)
