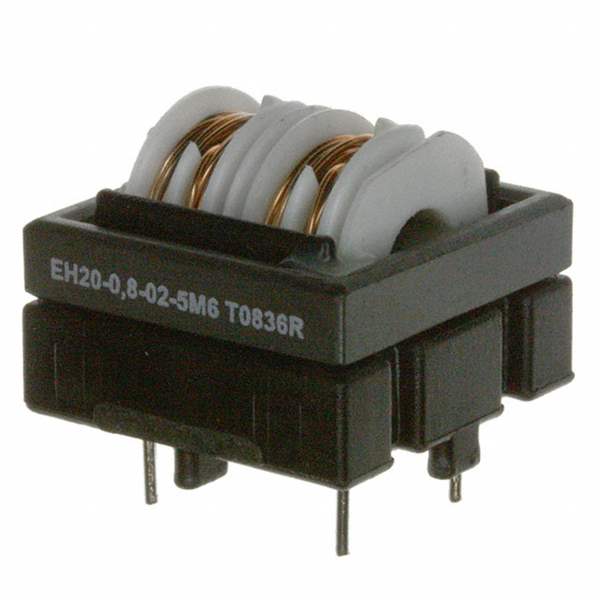

Same model may have multiple batches, images only for reference.
B82721A2601N020 EPCOS (TDK) – Price, Stock & Datasheet

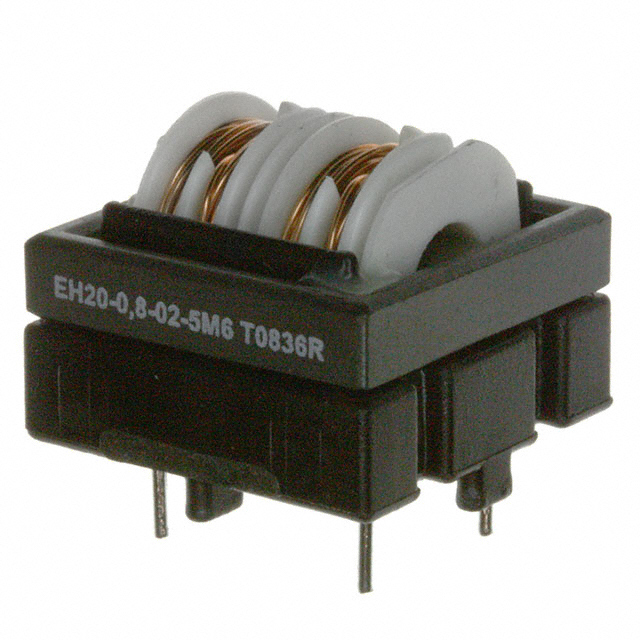

Same model may have multiple batches, images only for reference.

B82721A2601N020

Part No B82721A2601N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 15MH 600MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 700mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) 0.528" H (13.40mm)
Case / Package Horizontal, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1530383-B82721A2601N020
Ultra Librarian 3D Model Ultra Librarian B82721A2601N020 CAD Model
