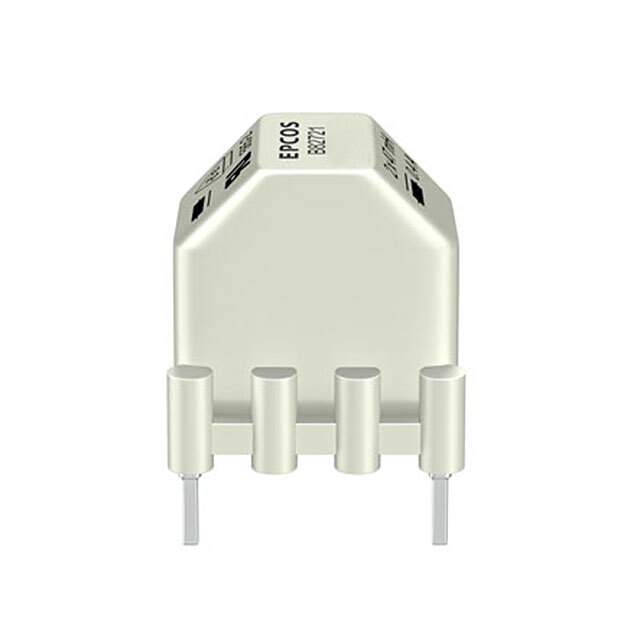

B82721K2401N20

Part No B82721K2401N20
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 39MH 400MA 2LN TH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 39mH @ 10kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.823" (20.90mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 200254-B82721K2401N20
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82721K2401N20 CAD Model

Description

Description

The B82721K2401N20 is engineered to deliver top-tier EMI suppression, making it ideal for high-performance applications that require reliable noise attenuation. This component ensures optimal functionality across various electronic setups.

Applications/Projects

  • Industrial control systems
  • Broadcast equipment
  • Automation systems
  • Military-grade electronics

Features and Benefits

  • Robust noise suppression capabilities
  • Suitable for high-power applications
  • Provides consistent performance in diverse operational conditions
  • Meets stringent quality and regulatory standards

Additional Details

The B82721K2401N20 is designed for resilience in demanding environments, ensuring superior noise management and safeguarding the functionality of complex electronic systems.
