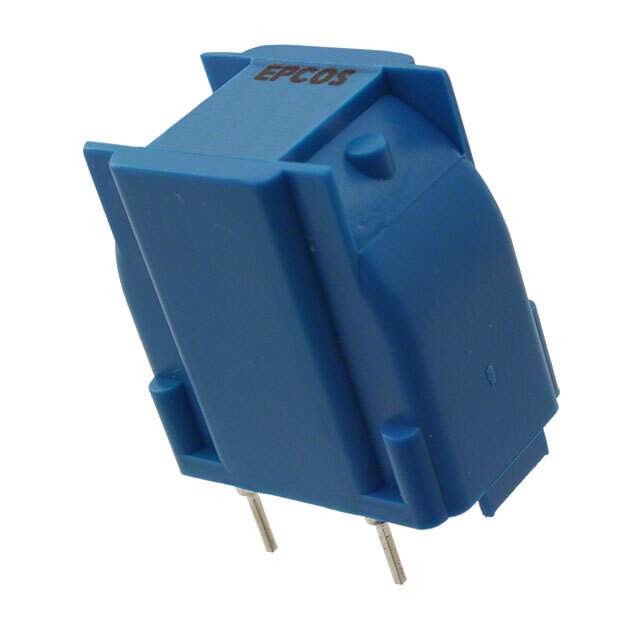

B82723J2402N001 Real Image1 B82723J2402N001 Real Image2
Same model may have multiple batches, images only for reference.
B82723J2402N001 Real Image1 B82723J2402N001 Real Image2
B82723J2402N001 Real Image1 B82723J2402N001 Real Image2
Same model may have multiple batches, images only for reference.

B82723J2402N001

Part No B82723J2402N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 2.7MH 4A 2LN TH / Common Mode Chokes Dual 2700uH 10kHz 4A 0.06Ohm DCR Thru-Hole Automotive Box
Datasheet
B82723J2402N001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82723
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.7mH @ 10kHz
Current Rating (Maximum) 4A
DC Resistance (DCR) (Maximum) 60 mOhm (Typ)
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 125°C
Approvals ENEC, UR, VDE
Mounting Style Through Hole
Dimension 1.102" L x 0.591" W (28.00mm x 15.00mm)
Height (Maximum) 1.201" (30.50mm)
Package Vertical, 4 PC Pin
Win Source Part Number 769584-B82723J2402N001
Popularity Medium
Supply and Demand Status Limited
Family Name B82723J
Introduction Date December 20, 2007
ECCN EAR99
Country of Origin Hungary
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian B82723J2402N001 CAD Model

Description

The B82723 series power line filter manufactured by EPCOS (TDK) is a high-quality filter.

  • Package: Vertical, 4 PC pin
  • Mounting: Through-hole
  • Voltage Rating: 250V AC
  • Approvals: ENEC, UR, VDE
  • Filter Type: Power line
  • Lines: Two
  • Inductance @ Frequency: 2.7mH @ 10kHz
  • Current Rating: 4A
  • DC Resistance (DCR): 60 mOhm (typ)
  • Compliance: ECCN EAR99, Halogen-free
  • Packaging: Tray
  • Popularity: Medium
  • EOL Date: 2023
