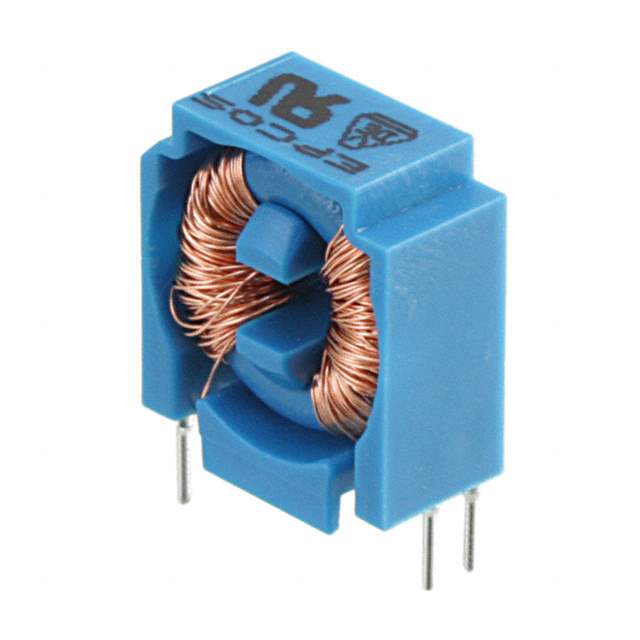

B82791H2251N020 Real Image
Same model may have multiple batches, images only for reference.

B82791H2251N020

Part No B82791H2251N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 47MH 250MA 2LN TH
Datasheet
B82791H2251N020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 47mH @ 10kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 2.4 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.693" (17.60mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 200286-B82791H2251N020
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82791H2251N020 CAD Model

Description

Product: B82791H2251N020

The B82791H2251N020 is an effective solution for EMI suppression, equipped to handle high-frequency noise and provide stable performance in various circuits.

Applications:

  • Ideal for power conversion systems
  • Use in industrial electronics
  • Suitable for telecommunications equipment

Features and Benefits:

  • Excellent performance in reducing electromagnetic interference
  • Durable design capable of high-temperature operations
  • Eco-friendly with RoHS compliance

Its robust build ensures long-term reliability even in demanding applications.
