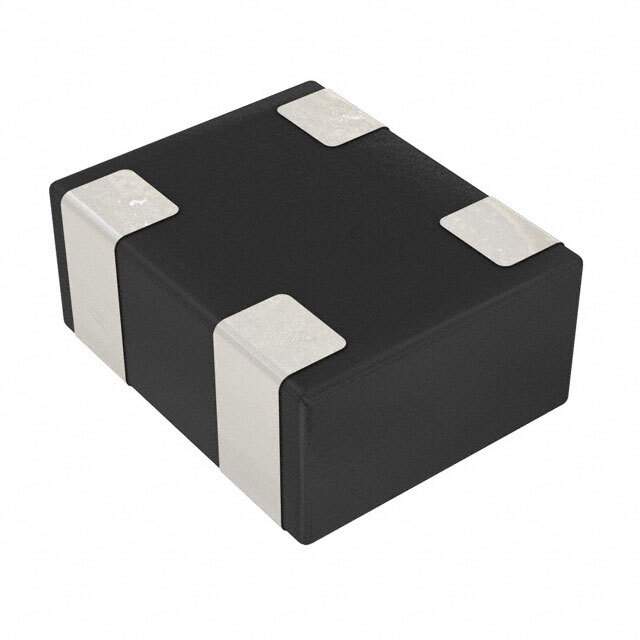

MCF06052E900-T Real Image
Same model may have multiple batches, images only for reference.

MCF06052E900-T

Part No MCF06052E900-T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 50MA 2LN 90 OHM SMD  /  2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 50mA DCR 3.9Ohm
Datasheet
MCF06052E900-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Taiyo Yuden
Series MC
Package Tape & Reel
Product Status Obsolete
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 50mA
DC Resistance (DCR) (Max) 3.9Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) 0.014" (0.35mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 587-6084-6,LR MCF06052E900-T,MCF06052E900-T-ND,MCF06052E900T,587-6084-1,587-6084-2
Standard Package 15,000
Win Source Part Number 1107938-MCF06052E900-T
Ultra Librarian 3D Model Ultra Librarian MCF06052E900-T CAD Model

Description

This common mode choke from Taiyo Yuden has a Win Source Part Number of 1107938-MCF06052E900-T. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Series: MC
  • Category: Filters
  • Package: Tape and Reel
  • Standard Package: 15,000
  • Voltage Rating: 5V
  • Current Rating: 50mA
  • Popularity: Low
  • Status: Obsolete
  • Impedance: 90 Ohms @ 100 MHz
  • DC Resistance: 3.9 Ohm
  • ECCN: EAR99
  • MSL: Level 1
  • Dimension: 0.026" L x 0.020" W (0.65mm x 0.50mm)
