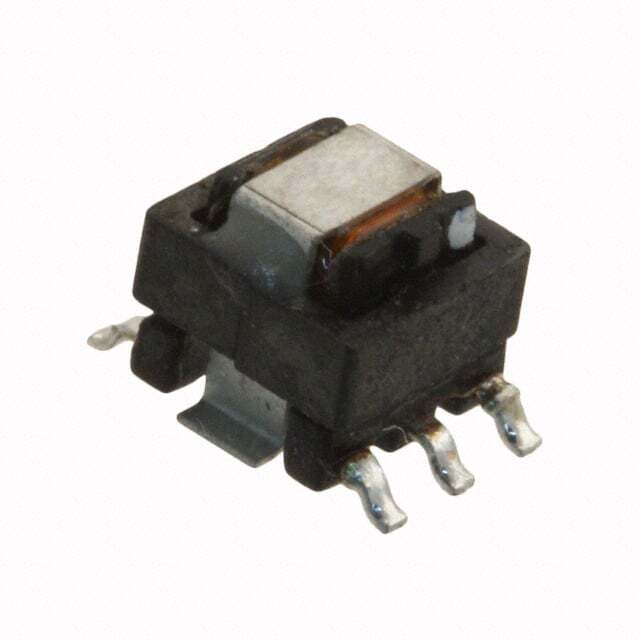

Part No B82801B0205A100
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 SMD / 1:100 Current Sense Transformer 50kHz ~ 1MHz 0.8mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr EPCOS (TDK)
Series B82801B
Package Tape & Reel
Product Status Active
Frequency Range 50kHz ~ 1MHz
Type Invasive
Inductance 2 mH
DC Resistance (DCR) 0.8mOhm Primary, 5.5Ohm Secondary
Mounting Type Surface Mount
Size / Dimension 0.280" L x 0.320" W (7.11mm x 8.13mm)
Height - Seated (Max) 0.200" (5.08mm)
Termination Style Gull Wing
Weight 0.014 oz (0.4 g)
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848926-B82801B0205A100
Ultra Librarian 3D Model Ultra Librarian B82801B0205A100 CAD Model

Description

The B82801B Current Sense Transformer is a compact and high-performance transformer used for current sensing applications.

  • Inductance: 2mH
  • Frequency Range: 50kHz to 1MHz
  • Size / Dimension: 0.280" L x 0.320" W (7.11mm x 8.13mm)
  • Height: 0.200" (5.08mm)
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Primary Winding DC Resistance: 0.8mOhm
  • Secondary Winding DC Resistance: 5.5Ohm
  • Manufacturer: EPCOS (TDK)
