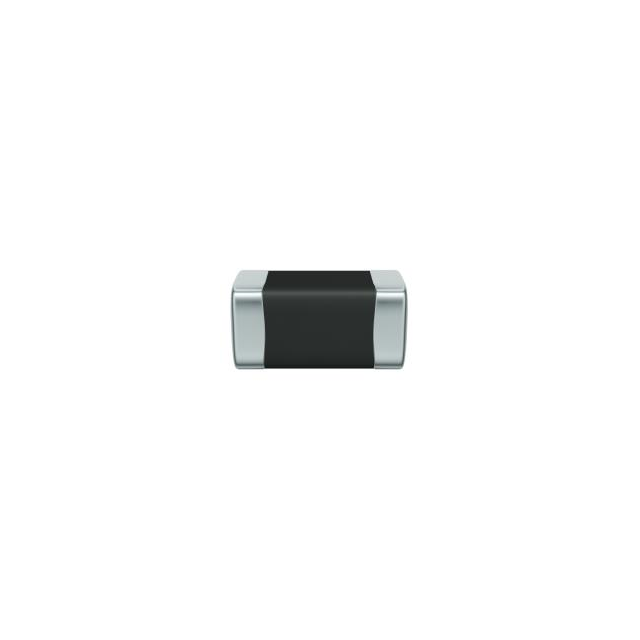

The CT1206K20AUTOG is a multilayer varistor from EPCOS (TDK), designed to protect electronic circuits from transient overvoltage events, such as electrostatic discharge (ESD) and lightning surges. This component is a Transient Voltage Suppressor (TVS) that provides bidirectional protection.

Applications

• Automotive electronics: Protecting sensitive components in automotive control units.
• Mobile devices: ESD protection for smartphones, tablets, and wearables.
• Industrial equipment: Overvoltage protection for industrial control systems and machinery.
• Power supplies: Surge protection for AC/DC and DC/DC power supplies.
• Data lines: Protecting data communication lines from transient voltage spikes.

Features

• Multilayer construction: Provides high surge current capability in a small package.
• Bidirectional protection: Protects circuits from both positive and negative voltage transients.
• Fast response time: Quickly clamps overvoltage transients, minimizing their impact on sensitive components.
• Low clamping voltage: Limits the voltage across the protected circuit during a surge event.
• Surface mount device (SMD): Facilitates automated assembly and reduces board space.

Benefits

• Enhanced equipment reliability: Protects against overvoltage damage, extending the lifespan of electronic devices.
• Reduced downtime: Minimizes equipment failures caused by surge events, reducing downtime and maintenance costs.
• Improved product safety: Protects users from potential electrical hazards associated with overvoltage transients.
• Simplified design: Easier integration into electronic circuits compared to discrete solutions.
• Compliance with industry standards: Meets relevant industry standards for surge protection.

Additional Details

The CT1206K20AUTOG varistor is designed for surface mount technology (SMT) and offers excellent performance in a compact 1206 package. Its key parameters include the varistor voltage, maximum surge current, and clamping voltage. It's crucial to consult the EPCOS datasheet for detailed specifications and application guidelines to ensure optimal performance in the target application.

The varistor operates by changing its resistance from a high value to a low value when the voltage across it exceeds its varistor voltage. This clamps the voltage and diverts the surge current away from the protected circuit. After the surge event, the varistor returns to its high-resistance state, allowing normal circuit operation to resume.
