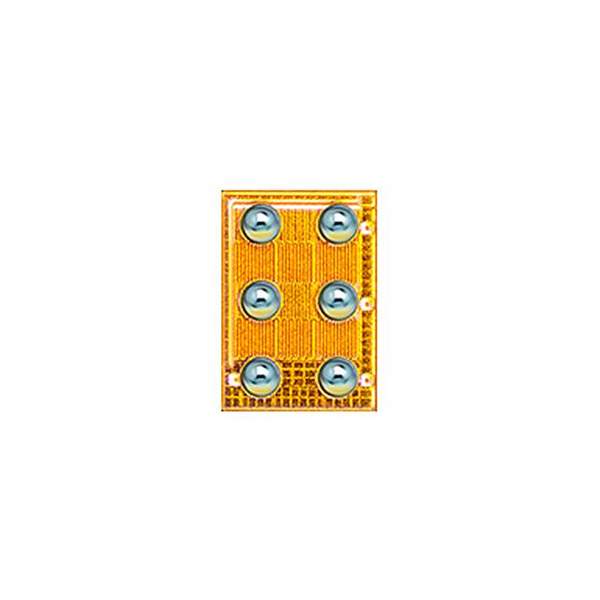

Same model may have multiple batches, images only for reference.

EPC2040

Name: EPC2040
Brand: EPCOS (TDK)
SKU: 1324536
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	EPC2040
Manufacturer	EPCOS (TDK)
Catalog	Transistors - FETs, MOSFETs - RF
Description	GANFET NCH 15V 3.4A DIE / N-Channel 15 V 3.4A (Ta) Surface Mount Die
Datasheet	EPC2040 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	EPC
Packaging	Reel - TR
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	15 V
Current - Continuous Drain (Id) @ 25°C	3.4A
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	30mOhm @ 1.5A, 5V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	0.93 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds	105 pF @ 6 V
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	Die
Case / Package	Die
Base Product Number	EPC20
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	917-1153-6,917-1153-2,917-1153-1
Standard Package	2,500
Win Source Part Number	1324536-EPC2040
Ultra Librarian 3D Model	Ultra Librarian EPC2040 CAD Model

Description

The 1324536-EPC2040 is a GaNFET transistor designed for use in discrete semiconductor products.

FET Type: N-Channel
Drain-to-Source Voltage: 15V
Continuous Drain Current: 3.4A @ 25°C
Rds On (Max) @ Id, Vgs: 30mOhm @ 1.5A, 5V
Vgs(th) (Max) @ Id: 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 0.93 nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds: 105 pF @ 6V
Mounting: Die
Drive Voltage: 5V
Temperature Range: -40°C to 150°C
ROHS3 Compliant: true
