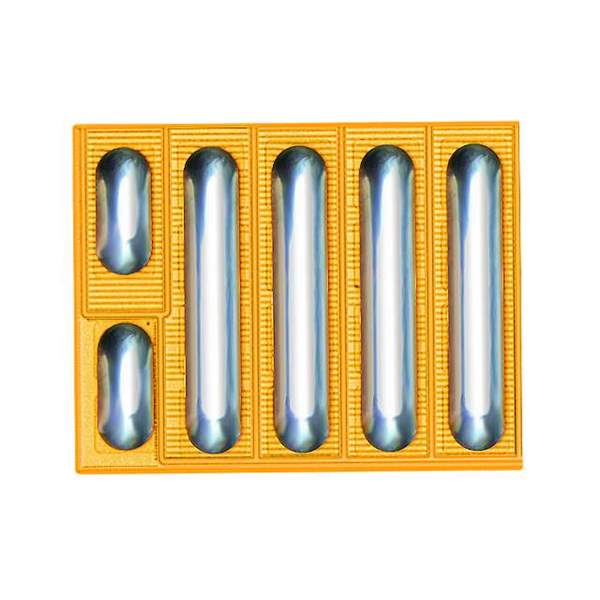

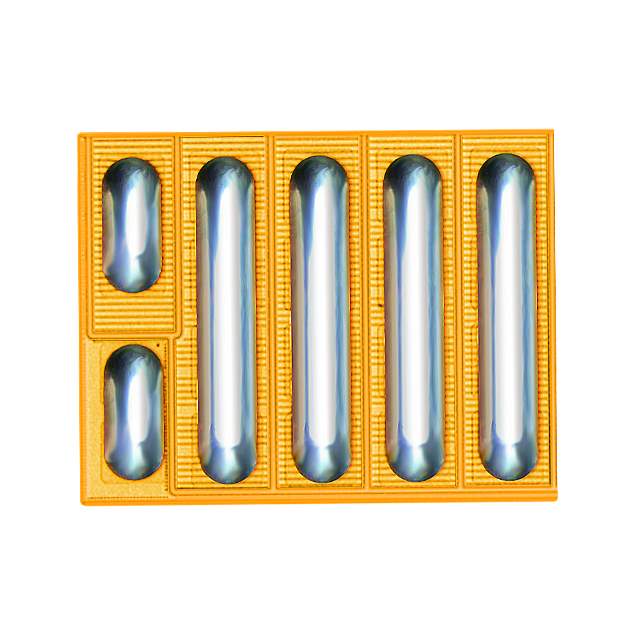

Same model may have multiple batches, images only for reference.

EPC2212

Name: EPC2212
Brand: EPCOS (TDK)
SKU: 1325232
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	EPC2212
Manufacturer	EPCOS (TDK)
Catalog	Transistors - FETs, MOSFETs - RF
Description	GANFET N-CH 100V 18A DIE / N-Channel 100 V 18A (Ta) Surface Mount Die
Datasheet	EPC2212 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	EPC
Packaging	Reel - TR
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	18A
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	13.5mOhm @ 11A, 5V
Vgs(th) (Max) @ Id	2.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs	4 nC @ 5 V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	407 pF @ 50 V
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	Die
Case / Package	Die
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0040
Other Part Number	917-1211-1,917-1211-2,917-1211-6
Standard Package	2,500
Win Source Part Number	1325232-EPC2212
Ultra Librarian 3D Model	Ultra Librarian EPC2212 CAD Model

Alternative Products

Description

The EPC2212 transistor is a N-channel GaNFET (Gallium Nitride) that has a maximum drain to source voltage rating of 100V.

Maximum Continuous Drain Current: 18A @ 25°C
Rds On (Max): 13.5mOhm @ 11A and 5V
Vgs(th) (Max): 2.5V @ 3mA
Gate Charge (Qg) (Max): 4nC @ 5Vgs
Input Capacitance (Ciss) (Max): 407pF @ 50Vds
Drive Voltage (Max Rds On, Min Rds On): 5V
Package: die
Temperature Range: -40°C to 150°C (TJ)
