Same model may have multiple batches, images only for reference.

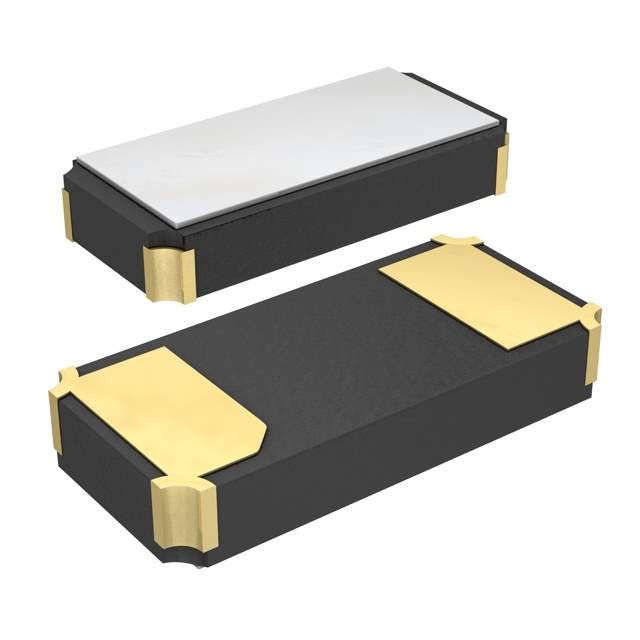

FC-135 32.7680KA-AC0 Real Image
Same model may have multiple batches, images only for reference.

FC-135 32.7680KA-AC0

Part No FC-135 32.7680KA-AC0
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series FC-135
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Other Names FC-13532.7680KA-AC0,FC-135 32.7680KA-AC0-ND,SER4084CT,FC-135 32.7680KA-AC 0-ND,Q13FC1350000314,821388,SER4084TR,FC-135 32.7680KA-AC 0,Q6784622,SER4084DKR
Standard Package 1,000
Win Source Part Number 1058623-FC-135 32.7680KA-AC0
Ultra Librarian 3D Model Ultra Librarian FC-135 32.7680KA-AC0 CAD Model

Description

The 1058623-FC-135 32.7680KA-AC0 is a kHz crystal (tuning fork) used in electronic circuits.

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 9pF
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Package Type: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Operating Temperature Range: -40°C ~ 85°C
  • Manufacturer: EPSON
