Same model may have multiple batches, images only for reference.

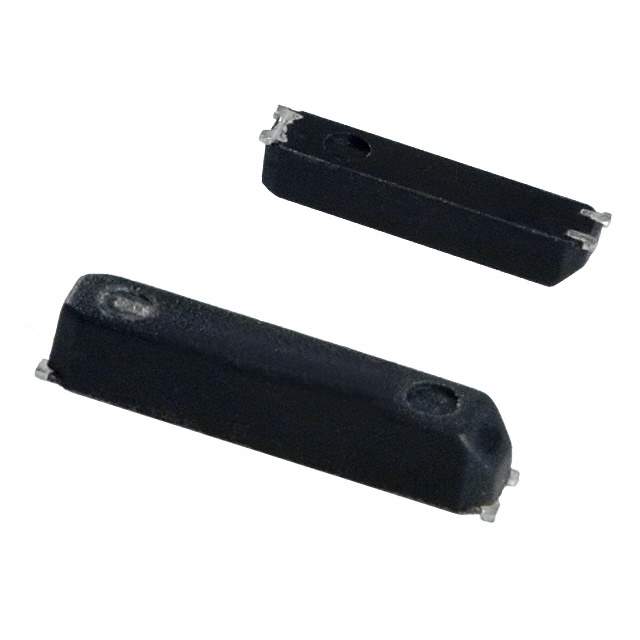

MC-146 32.768KA-AC3 Real Image
Same model may have multiple batches, images only for reference.

MC-146 32.768KA-AC3

Part No MC-146 32.768KA-AC3
Manufacturer Epson Company
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 65 kOhms 4-SMD, Flat Leads
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer EPSON
Packaging Reel - TR
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 4-SMD, Flat Leads
Size / Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.60.0010
Other Part Number SE2416TR,SE2416DKR,MC14632768KAAC3,SE2416CT
Standard Package 250
Win Source Part Number 1329164-MC-146 32.768KA-AC3
Ultra Librarian 3D Model Ultra Librarian MC-146 32.768KA-AC3 CAD Model

Description

The 1329164-MC-146 32.768KA-AC3 is a kHz crystal (tuning fork) that is ideal for various applications.

  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 65 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 9pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, Flat Leads
  • Height Seated (Max): 0.055" (1.40mm)
  • Size/Dimension: 0.264" L x 0.059" W (6.70mm x 1.50mm)
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
  • HTSUS: 8541.60.0010
  • Manufacturer: EPSON
